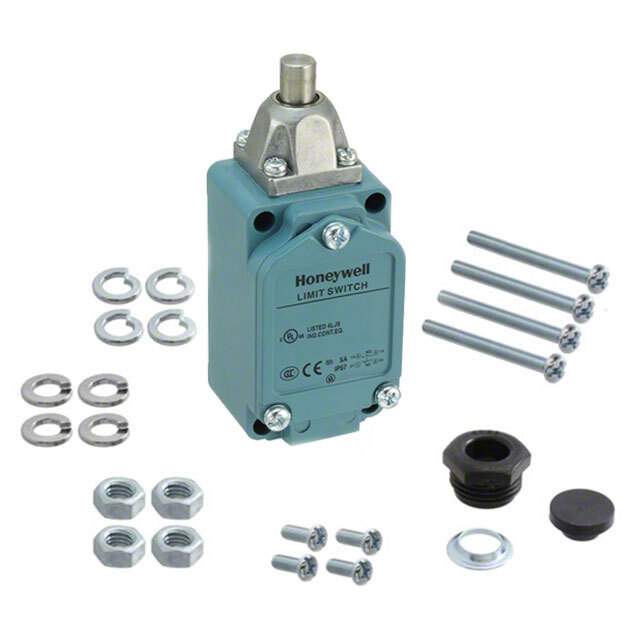

SZL-WL-F-N Real Image
Same model may have multiple batches, images only for reference.

SZL-WL-F-N

Part No SZL-WL-F-N
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-WL-F-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-WL
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 2720gf
Pretravel 0.067" (1.7mm)
Differential Travel 0.040" (1.0mm)
Overtravel 0.252" (6.4mm)
Temperature Range - Operating -10°C ~ 80°C
Operating Position 0.067" (1.70mm)
Electrical Life 750,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-WL
Other Names 480-6692
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233638-SZL-WL-F-N
Ultra Librarian 3D Model Ultra Librarian SZL-WL-F-N CAD Model

Description

The Honeywell SZL-WL limit switch is a durable and reliable switch with a circuit of SPDT (DB/DM).

  • Circuit: SPDT (DB/DM)
  • Ingress Protection: IP67 - dust tight, waterproof
  • Voltage Rating: AC: 125V, DC: 30V
  • Actuator Type: Round (pin plunger)
  • Mechanical Life: 10,000,000 cycles
  • Mounting Type: Chassis mount
  • Temperature Range for Operating: -10°C ~ 80°C
  • Switch Function: On-Mom
