Same model may have multiple batches, images only for reference.

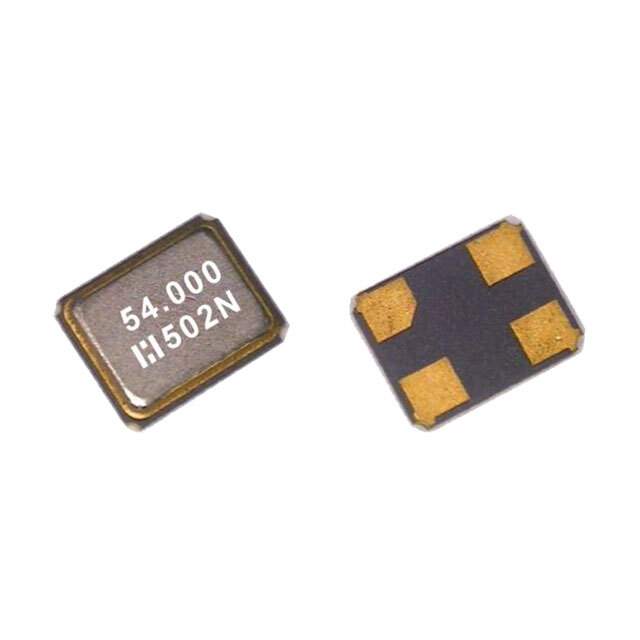

E3SB8E0000003E Real Image
Same model may have multiple batches, images only for reference.

E3SB8E0000003E

Part No E3SB8E0000003E
Manufacturer Hosonic Electronic Co., Ltd
Catalog Oscillators
Description XTAL 3225 8MHZ, 10PF  /  8 MHz ±30ppm Crystal 10pF 500 Ohms 4-SMD, No Lead
Datasheet
E3SB8E0000003E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Hosonic Electronic Co., Ltd
Series E3SB
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 500 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.030" (0.75mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 3186-E3SB8E0000003ECT,3186-E3SB8E0000003EDKR,3186-E3SB8E0000003ETR
Standard Package 3,000
Win Source Part Number 977431-E3SB8E0000003E
Ultra Librarian 3D Model Ultra Librarian E3SB8E0000003E CAD Model

Description

The 977431-E3SB8E0000003E is a MHz crystal from Hosonic Electronic Co., Ltd. Bold the product name (e.g., BAV99S,135 → 977431-E3SB8E0000003E) and manufacturer (e.g., Nexperia USA Inc. → Hosonic Electronic Co., Ltd.).

  • Mounting Type: Surface Mount
  • Package Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Seated Height: 0.030" (0.75mm)
  • Mode: Fundamental
  • Frequency: 8 MHz
  • ESR: 500 Ohms
  • Frequency Stability and Tolerance: ±30ppm
  • Load Capacitance: 10pF
  • Operating Temperature Range: -30°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Other Names: 3186-E3SB8E0000003ECT, 3186-E3SB8E0000003EDKR, and 3186-E3SB8E0000003ETR
