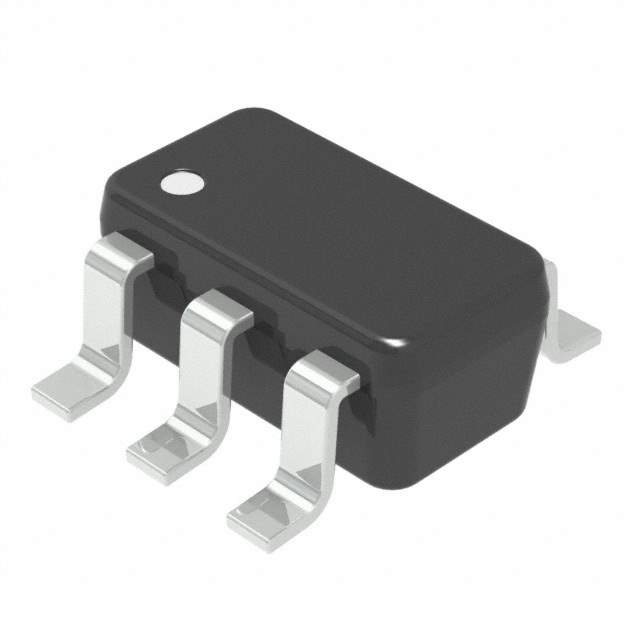

1EDN7550BXTSA1 Real Image
Same model may have multiple batches, images only for reference.

1EDN7550BXTSA1

Part No 1EDN7550BXTSA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HIGH-SIDE SOT23-6 / High-Side Gate Driver IC Non-Inverting PG-SOT23-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Driven Configuration High-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 4.5V ~ 20V
Current - Peak Output (Source, Sink) 4A, 8A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 84 V
Rise / Fall Time (Typ) 6.5ns, 4.5ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package PG-SOT23-6
Base Product Number 1EDN7550
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1348680-1EDN7550BXTSA1
Ultra Librarian 3D Model Ultra Librarian 1EDN7550BXTSA1 CAD Model

Description

The Infineon Technologies 1EDN7550BXTSA1 is a single-channel high-side gate driver for use with N-Channel and P-Channel MOSFETs.

  • Channel Configuration: High-Side
  • Channel Type: N-Channel, P-Channel
  • Package / Case: SOT-23-6
  • Voltage - Supply: 4.5V to 20V
  • Peak Output Current - Source: 4A
  • Peak Output Current - Sink: 8A
  • High-Side Voltage - Max: 84V
  • Rise / Fall Time (Typ): 6.5ns / 4.5ns
  • Application: Power Management
