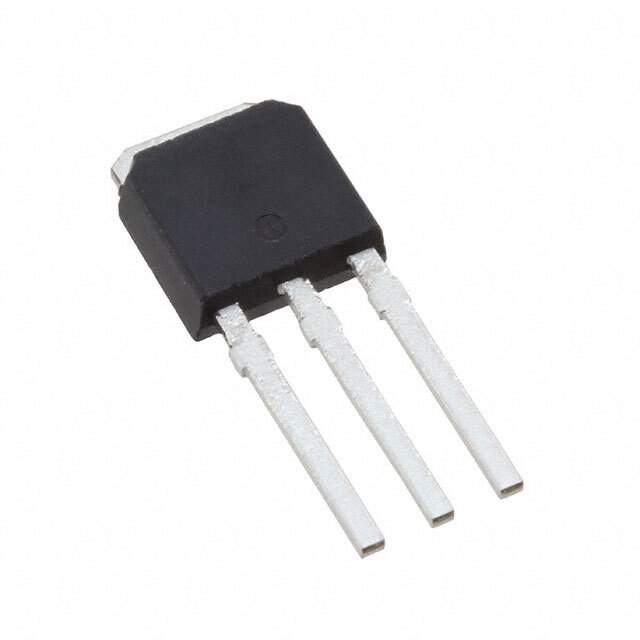

AUIRLU3110Z Real Image
Same model may have multiple batches, images only for reference.

AUIRLU3110Z

Part No AUIRLU3110Z
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 63A IPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 42A (Tc)
Gate-Source Threshold Voltage 2.5V @ 100μA
Max Gate Charge 48nC @ 4.5V
Max Input Capacitance 3980pF @ 25V
Power Dissipation (Max) 140W (Tc)
Maximum Rds On at Id,Vgs 14 mOhm @ 38A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package I-Pak
Dimension TO-251-3 Short Leads, IPak, TO-251AA
Win Source Part Number 1020823-AUIRLU3110Z
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AUIRLU3110Z CAD Model

Description

The Infineon Technologies MOSFET is a high power N-Channel transistor with a drain-source breakdown voltage of 100V.

  • Drain-Source Breakdown Voltage: 100V
  • Maximum Power Dissipation: 140W @ Tc
  • Package: I-Pak
  • Dimension: TO-251-3 Short Leads, IPak, TO-251AA
  • Continuous Drain Current: 42A @ 25°C @ Tc
  • Gate-Source Threshold Voltage: 2.5V @ 100μA
  • Maximum Rds On: 14 mOhm @ Id, Vgs 38A, 10V
  • Suitable for: discrete semiconductor products
  • Popularity: medium
  • Supply and Demand: balanced
