Same model may have multiple batches, images only for reference.

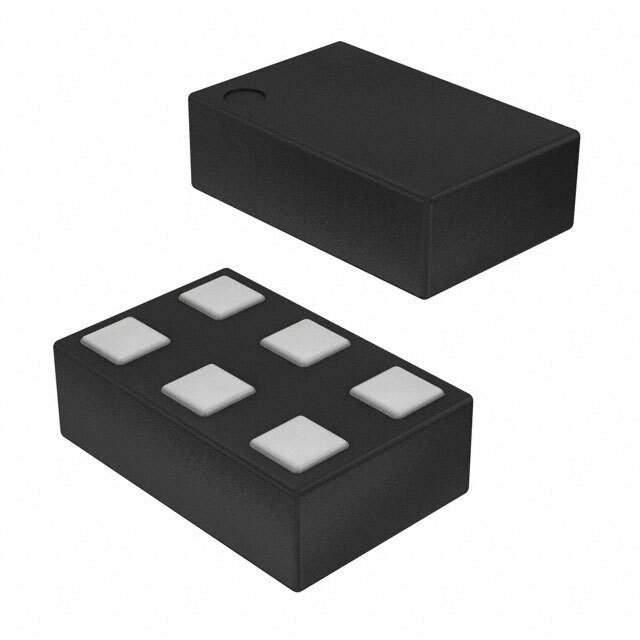

BGA855N6E6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BGA855N6E6327XTSA1

Part No BGA855N6E6327XTSA1
Manufacturer Infineon Technologies
Catalog RF Amplifiers
Description IC AMP GPS 1.164GHZ-1.3GHZ TSNP6 / RF Amplifier IC GPS/GNSS 1.164GHz ~ 1.3GHz PG-TSNP-6-10
Datasheet
BGA855N6E6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications

Category RF and Wireless - RF Amplifiers
Mfr Infineon Technologies
Package Tape & Reel
Product Status Active
Frequency 1.164GHz ~ 1.3GHz
P1dB -8dBm
Gain 18.9dB
Noise Figure 0.6dB
RF Type GPS/GNSS
Voltage - Supply 1.1V ~ 3.3V
Current - Supply 5.4mA
Test Frequency 1.214GHz
Mounting Type Surface Mount
Package / Case 6-XFDFN
Supplier Device Package PG-TSNP-6-10
Base Product Number BGA855
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 843966-BGA855N6E6327XTSA1

Description

The 843966-BGA855N6E6327XTSA1 is an RF amplifier designed by Infineon Technologies. It is specifically designed for GPS/GNSS applications and operates at a frequency range of 1.164GHz to 1.3GHz. The amplifier has a gain of 18.9dB and a noise figure of 0.6dB. It requires a supply voltage of 1.1V to 3.3V and consumes a current of 5.4mA. The amplifier is surface mountable and comes in a 6-XFDFN package. It is available in tape and reel packaging with a standard package of 12,000 pieces. The MSL level for this component is 1, indicating unlimited shelf life. The Win Source Part Number for this product is 843966-BGA855N6E6327XTSA1.
