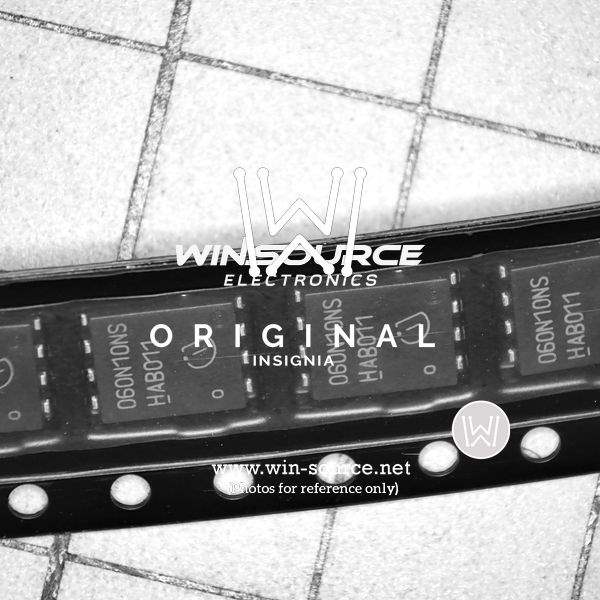

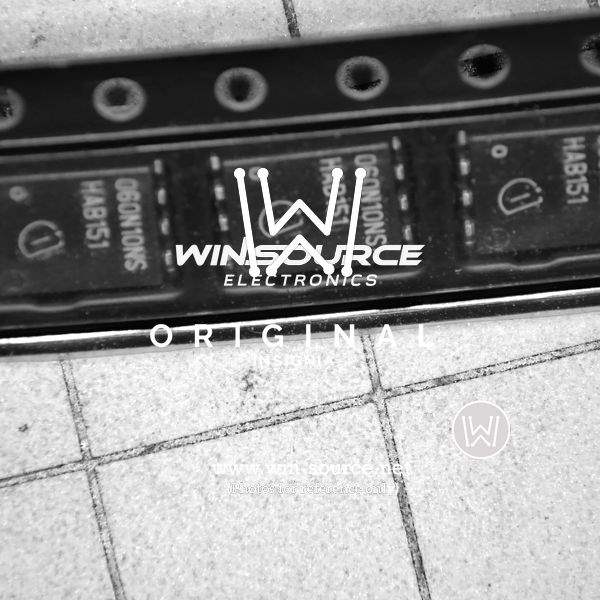

Same model may have multiple batches, images only for reference.

BSC060N10NS3 G

Name: BSC060N10NS3 G
Brand: Infineon Technologies
SKU: 82920
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSC060N10NS3 G
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	MOSFET N-CH 100V 90A TDSON-8
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Infineon Technologies
Standard Package	1
Category	Discrete Semiconductor Products
Family	FETs - Single
Series	OptiMOS
Packaging	Reel
FET Type	MOSFET N-Channel Metal Oxide
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	14.9A (Ta) 90A (Tc)
Rds On (Max) @ Id Vgs	6 mOhm @ 50A 10V
Vgs(th) (Max) @ Id	3.5V @ 90µA
Gate Charge (Qg) @ Vgs	68nC @ 10V
Input Capacitance (Ciss) @ Vds	4900pF @ 50V
Power - Max	125W
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting Style	SMD/SMT
Package	8-PowerTDFN
Manufacturer Device Package	PG-TDSON-8
Catalog	N-Channel Standard FETs
Win Source Part Number	079688-BSC060N10NS3 G
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian BSC060N10NS3 G CAD Model

Alternative Products

Description

Features and Benefits of BSC060N10NS3 G

Reduced switching losses
Wide range of voltage operation
High reliability due to robust construction
SMD package for automated assembly

Applications and Projects

Industrial power supplies
Solar inverters
Power tools
Automotive electronics

The BSC060N10NS3 G is tailored for applications that require efficient power transfer while minimizing losses. This component is particularly suited for use in demanding environments, supporting a multitude of electronic designs.
