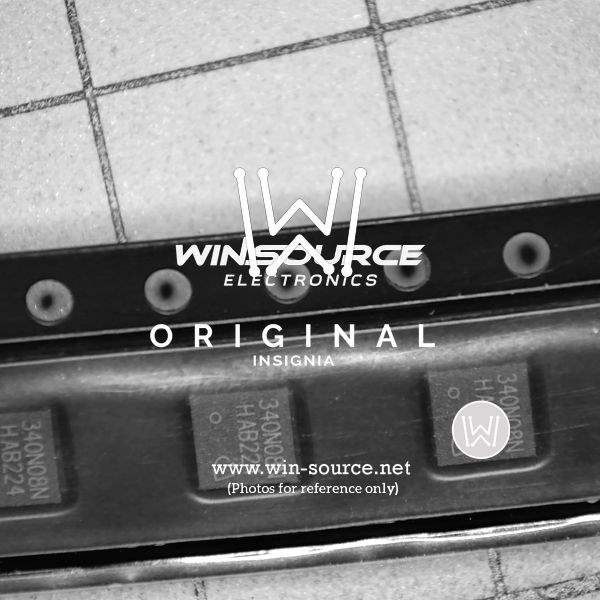

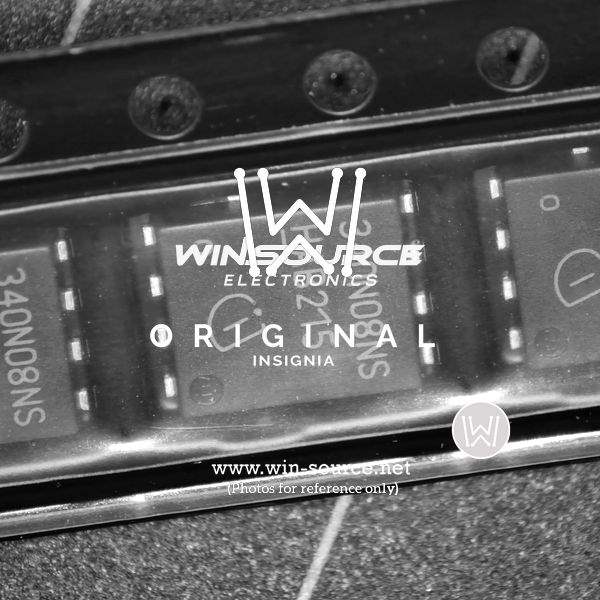

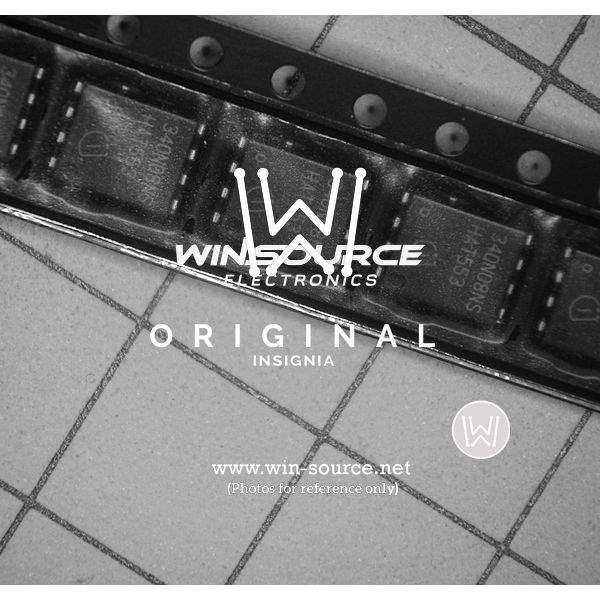

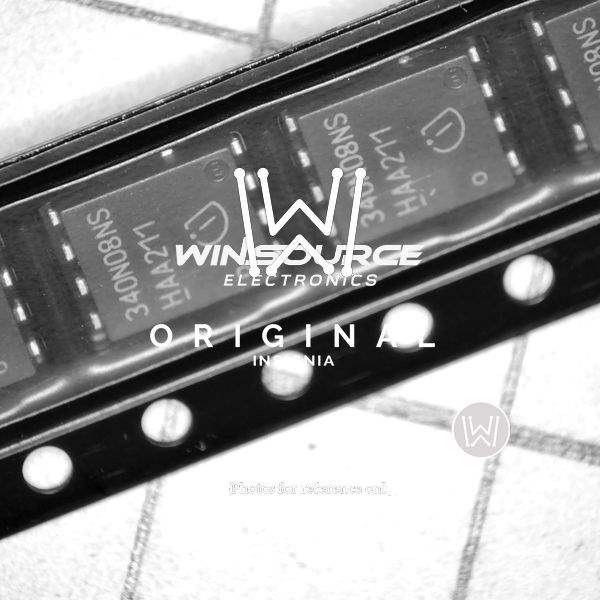

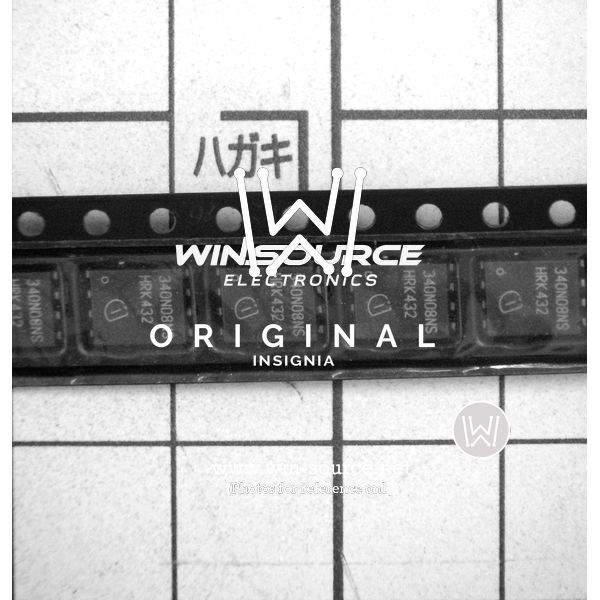

BSC340N08NS3G Real Image BSC340N08NS3G real image2718 BSC340N08NS3G real image2719 BSC340N08NS3G Real Image1 BSC340N08NS3G Real Image2 BSC340N08NS3G Real Image3 BSC340N08NS3G Real Image4 BSC340N08NS3G Real Image5
Same model may have multiple batches, images only for reference.
BSC340N08NS3G Real Image BSC340N08NS3G real image2718 BSC340N08NS3G real image2719 BSC340N08NS3G Real Image1 BSC340N08NS3G Real Image2 BSC340N08NS3G Real Image3 BSC340N08NS3G Real Image4 BSC340N08NS3G Real Image5
BSC340N08NS3G Real Image BSC340N08NS3G real image2718 BSC340N08NS3G real image2719 BSC340N08NS3G Real Image1 BSC340N08NS3G Real Image2 BSC340N08NS3G Real Image3 BSC340N08NS3G Real Image4 BSC340N08NS3G Real Image5
Same model may have multiple batches, images only for reference.

BSC340N08NS3G

Part No BSC340N08NS3G
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 80V 7A Automotive 8-Pin TDSON EP T/R / MOSFET N-CH 80V 23A TDSON-8
Datasheet
BSC340N08NS3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 80V
Continuous Drain Current at 25°C 7A (Ta), 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 3.5V @ 12μA
Max Gate Charge 9.1nC @ 10V
Max Input Capacitance 756pF @ 40V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 32W (Tc)
Maximum Rds On at Id,Vgs 34 mOhm @ 12A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 091405-BSC340N08NS3G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BSC340N08NS3
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Austria, China, Germany, Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian BSC340N08NS3G CAD Model

Description

Product Description

The BSC340N08NS3G is a robust N-channel Power MOSFET ideal for high-performance applications. With a low on-resistance and a high-speed switching capability, it offers optimal power efficiency. This MOSFET is well-suited for various applications requiring precise power management.

Features and Benefits

  • Low on-resistance: Increases efficiency by minimizing power loss.
  • High-speed switching: Enhances performance in switching applications.
  • Thermal stability: Operates reliably under varying thermal conditions.

Applications

  • Switching power supplies
  • DC-DC converters
  • Motor drives
  • Power management systems

This component is perfect for engineers seeking a blend of reliability and efficiency in their power applications.
