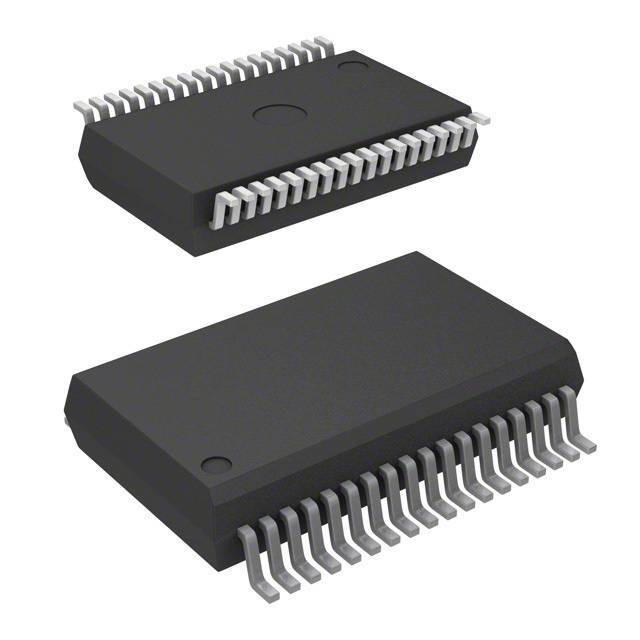

Same model may have multiple batches, images only for reference.
BTS5460SFXUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BTS5460SFXUMA1

Part No BTS5460SFXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SW SMART HI SIDE 4CH DSO36-43 / SPI Power Controller for Advanced Light Control with Integrated LED Mode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series Reversave
Packaging Reel package
Switch Type General
Number of Outputs 4
Output Configuration High Side
Output Type N-Channel
Interface SPI
Voltage - Load 8 V ~ 17 V
Supply Voltage 3 V ~ 5.5 V
Rds On (Typ) 3.5 mOhm, 11 mOhm
Features Slew Rate Controlled
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 36-BSSOP (0.295", 7.50mm Width)
Manufacturer Package PG-DSO-36-43
Win Source Part Number 770597-BTS5460SFXUMA1
Popularity Medium
Supply and Demand Status Limited
Family Name BTS5460SF
Introduction Date April 15, 2010
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian BTS5460SFXUMA1 CAD Model

Description

The Infineon Technologies BTS5460SFXUMA1 is an integrated circuit that comes under the category of general switch type products.

    The BTS5460SFXUMA1 is designed to meet the requirements of various applications. It offers high performance and flexibility. This integrated circuit is easy to use and offers a wide range of features. The BTS5460SFXUMA1 is a reliable and cost-effective solution for various power applications.
