Product Overview: HMC849LP4CE by Analog Devices Inc.

The HMC849LP4CE is a high-performance, GaAs MMIC SPDT (Single Pole Double Throw) switch from Analog Devices Inc., a renowned leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits. This device operates over a broad frequency range from DC to 4 GHz, making it an ideal choice for diverse RF applications including test equipment, military and space, cellular infrastructure and more.

Key Features

• Frequency Range: This switch is designed to operate from DC to 4 GHz, providing versatility for a wide range of RF applications.
• Low Insertion Loss: The HMC849LP4CE boasts a low insertion loss of 0.6 dB at 2 GHz, which helps to maintain signal integrity through the switch.
• High Isolation: With an isolation of 45 dB at 2 GHz, the device ensures minimal crosstalk between the RF ports.
• Non-Reflective Design: The switch is non-reflective with 50 Ohm matched ports, reducing VSWR and enhancing the overall performance of the RF chain.
• Positive Control Voltage: The switch requires a single positive control voltage of 0/+5V, simplifying the control interface and power supply design.

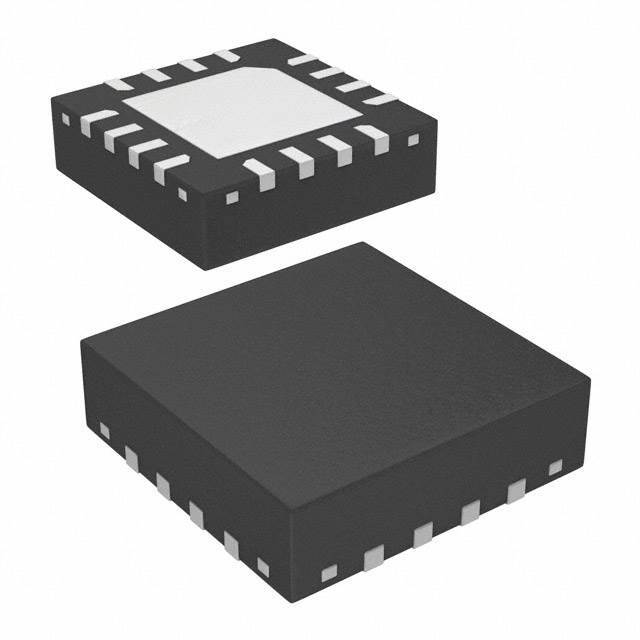

• Lead-Free SMT Package: Housed in a compact 4x4 mm QFN lead-free SMT package, the HMC849LP4CE is suitable for space-constrained applications.

Applications

The HMC849LP4CE is designed for use in a variety of applications, including:

• Wireless infrastructure
• RF/IF radio systems
• Broadband communications
• Test instrumentation
• Satellite communications

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products, and the HMC849LP4CE is no exception. It is manufactured to meet the highest industry standards for performance and reliability, ensuring that it meets the rigorous demands of both commercial and military applications.

Overall, the HMC849LP4CE from Analog Devices Inc. is a robust and reliable component that offers excellent RF performance for a variety of applications. Its broad frequency range, low insertion loss, and high isolation make it a top choice for designers looking to optimize their RF signal routing solutions.
