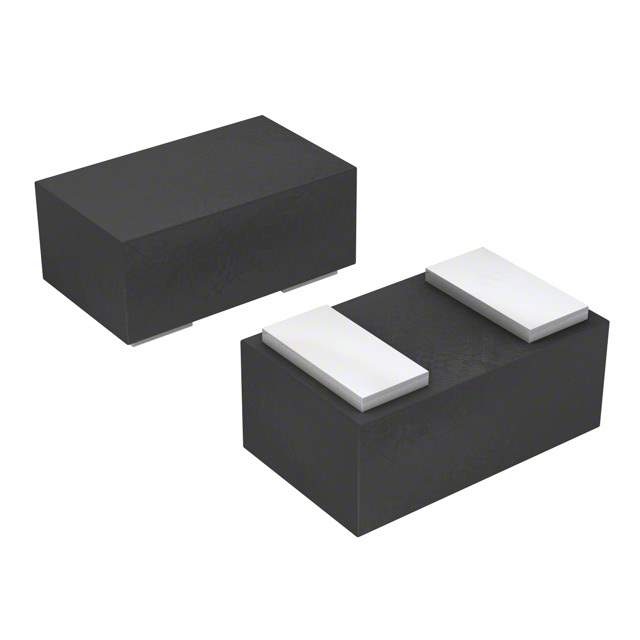

ESD114U102ELE6327XTMA1

Name: ESD114U102ELE6327XTMA1
Brand: Infineon Technologies
SKU: 960563
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ESD114U102ELE6327XTMA1
Manufacturer	Infineon Technologies
Catalog	TVS - Diodes
Description	TVS DIODE 5.3VWM 28VC TSLP-2-19 / 28V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSLP-2-19
Datasheet	ESD114U102ELE6327XTMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Infineon Technologies
Package	Tape & Reel
Product Status	Not For New Designs
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.3V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	28V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.4pF @ 1MHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	0402 (1006 Metric)
Supplier Device Package	PG-TSLP-2-19
Base Product Number	ESD114
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	ESD114-U1-02EL E6327-ND,ESD114-U1-02EL E6327DKR-ND,ESD114U102ELE6327XTMA1CT,SP001213176,ESD114U102ELE6327XTMA1DKR,ESD114U102ELE6327XTMA1TR,ESD114-U1-02EL E6327CT-ND,ESD114-U1-02EL E6327TR-ND,ESD114-U1-02EL E6327TR,ESD114-U1-02EL E6327DKR,ESD114-U1-02EL E6327CT,ESD114-U1-02EL E6327
Standard Package	15,000
Win Source Part Number	960563-ESD114U102ELE6327XTMA1
Ultra Librarian 3D Model	Ultra Librarian ESD114U102ELE6327XTMA1 CAD Model

Alternative Products

Description

The ESD114U102ELE6327XTMA1 is a Zener type TVS diode in a 0402 (1006 Metric) package.

Application: HDMI applications
Packaging: Tape and reel
Standard Package: 15,000 units
Voltage Reverse Standoff (Typ): 5.3V (Max)
Voltage Breakdown (Min): 6V
Voltage Clamping (Max) @ Ipp: 28V (Typ)
Current Peak Pulse (10/1000µs): 3A (8/20µs)
Capacitance @ Frequency: 0.4pF @ 1MHz
Temperature Range: -55°C ~ 125°C (TJ)
Alternative Parts and Cross-References: SMBJ12A, SMBJ12D-M3/H, and ESD114-U1-02ELE6327
