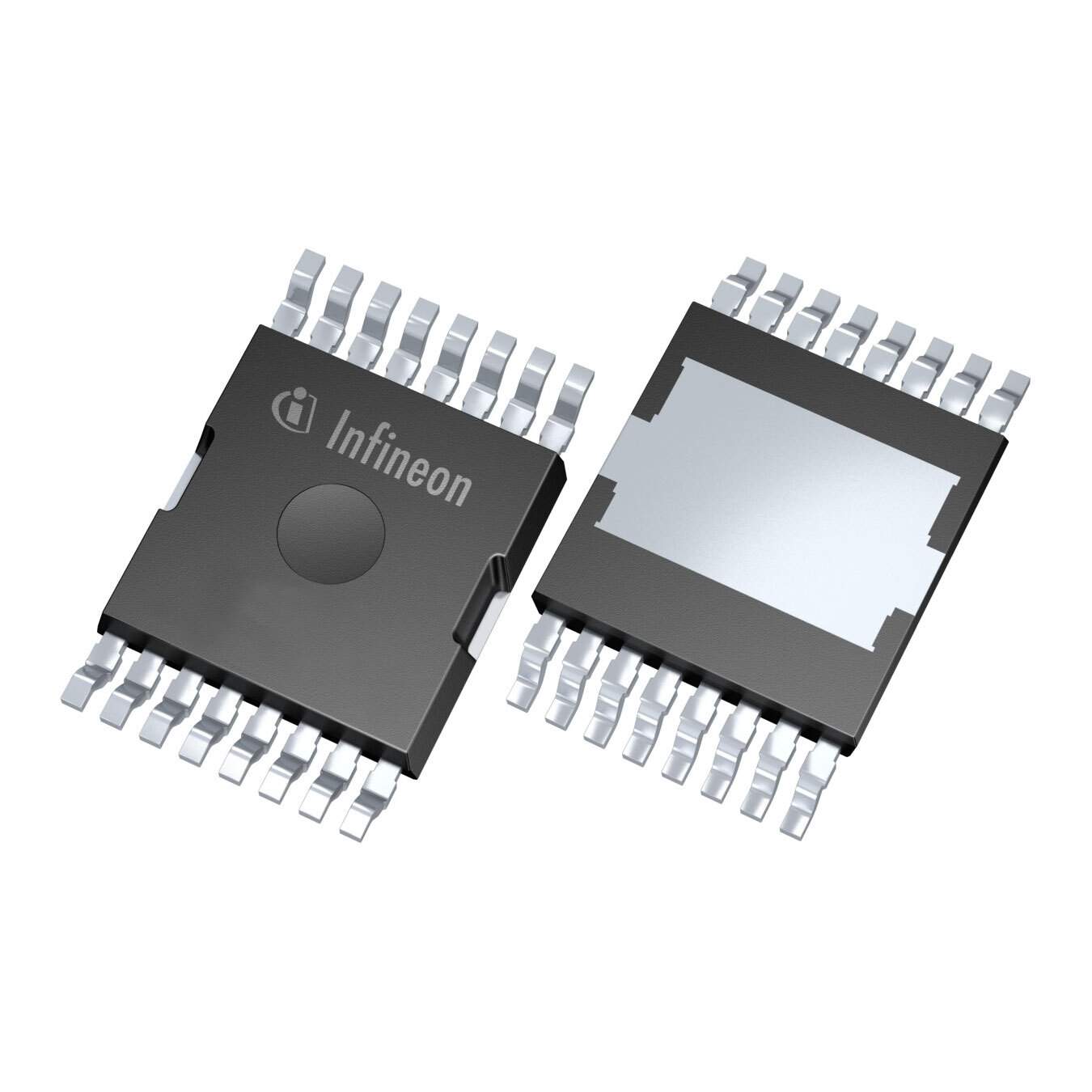

Same model may have multiple batches, images only for reference.

IAUS260N10S5N019TATMA1

Name: IAUS260N10S5N019TATMA1
Brand: Infineon Technologies
SKU: 1336947
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IAUS260N10S5N019TATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 260A HDSOP-16-2 / N-Channel 100 V 260A (Tj) 300W (Tc) Surface Mount PG-HDSOP-16-2
Datasheet	IAUS260N10S5N019TATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	OptiMOS™ 5
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	260A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.9mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.8V @ 210µA
Gate Charge (Qg) (Max) @ Vgs	166 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11830 pF @ 50 V
Power Dissipation (Max)	300W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-16-2
Package / Case	16-PowerSOP Module
Standard Package	1,800
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1336947-IAUS260N10S5N019TATMA1
Ultra Librarian 3D Model	Ultra Librarian IAUS260N10S5N019TATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies 1336947-IAUS260N10S5N019TATMA1 is a single N-channel MOSFET transistor.

Manufacturer: Infineon Technologies
Series: OptiMOS™ 5
Channel Type: N-channel
Package: tape and reel
Standard Package: 1,800
AEC-Q101: Yes
Automotive: Yes
MSL: 1 (Unlimited)
REACH: REACH unaffected
HTSUS: 8541.29.0095
Drive Voltage: 6V, 10V
Continuous Drain Current: 260A
Rds On: 1.9mOhm
