Same model may have multiple batches, images only for reference.

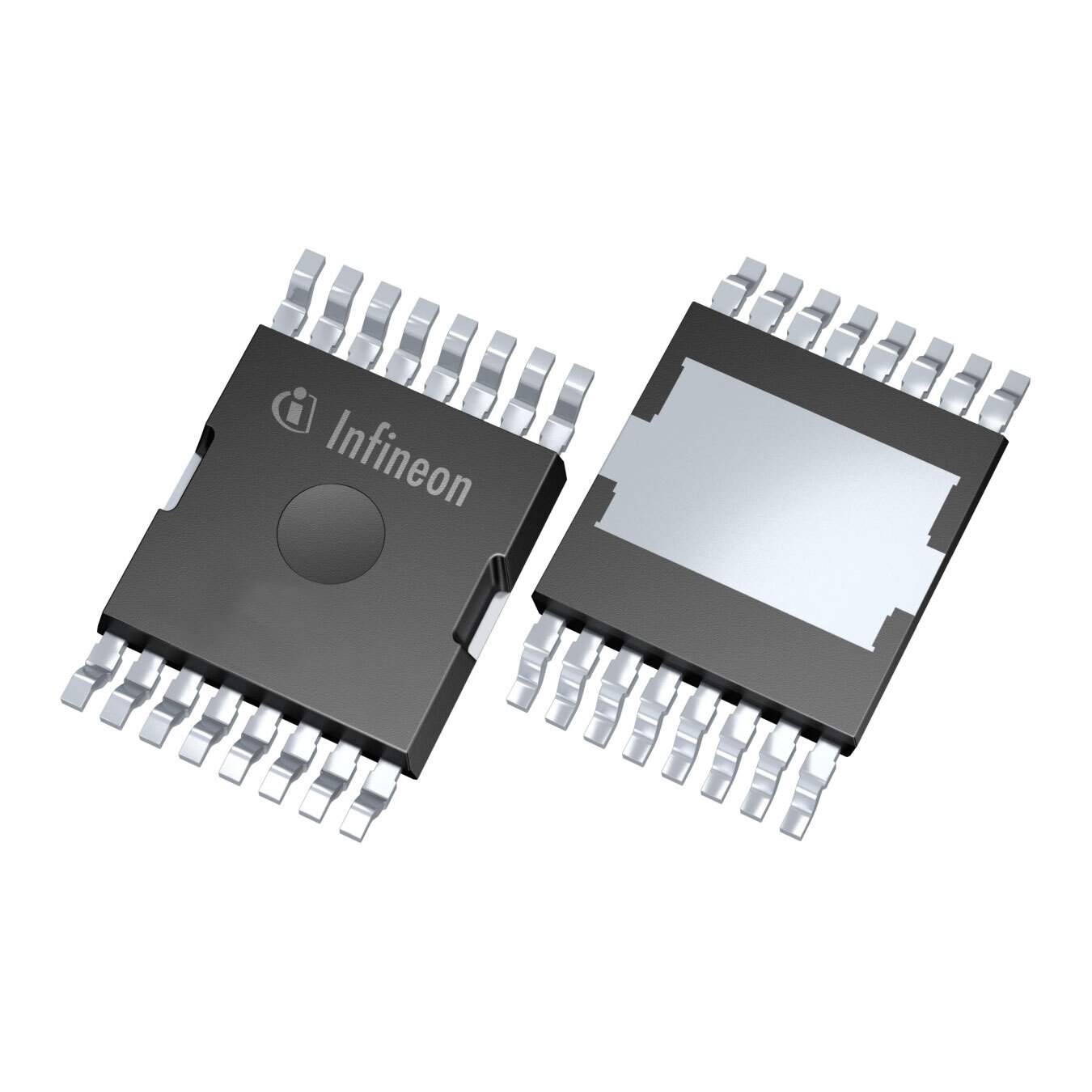

IAUS300N08S5N012TATMA1 Real Image
Same model may have multiple batches, images only for reference.

IAUS300N08S5N012TATMA1

Part No IAUS300N08S5N012TATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 80V 300A HDSOP-16-2 / N-Channel 80 V 300A (Tj) 375W (Tc) Surface Mount PG-HDSOP-16-2
Datasheet
IAUS300N08S5N012TATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series OptiMOS™ 5
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 80 V
Current - Continuous Drain (Id) @ 25°C 300A (Tj)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 1.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id 3.8V @ 275µA
Gate Charge (Qg) (Max) @ Vgs 231 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 16250 pF @ 40 V
Power Dissipation (Max) 375W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-HDSOP-16-2
Package / Case 16-PowerSOP Module
Standard Package 1,800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1342145-IAUS300N08S5N012TATMA1
Ultra Librarian 3D Model Ultra Librarian IAUS300N08S5N012TATMA1 CAD Model

Description

The IAUS300N08S5N012TATMA1 is a MOSFET (Metal Oxide) N-Channel FET that is part of the OptiMOS™ 5 series.

  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Series: OptiMOS™ 5
  • Drain to Source Voltage (Vdss): 80V
  • Power Dissipation (Max): 375W (Tc)
  • Drive Voltage (Rds On, Vgs): 6V, 10V
  • Continuous Drain Current (Id) @ 25°C: 300A (Tj)
  • Rds On (Max) @ Id, Vgs: 1.2mOhm @ 100A, 10V
  • Input Capacitance (Ciss) @ Vds: 16250 pF @ 40V
  • Gate Charge (Qg) @ Vgs: 231 nC @ 10 V
  • Package / Case: 16-PowerSOP Module
  • Operating Temperature: -55℃ ~ 175℃ (TJ)
  • Manufacturer: Infineon Technologies
