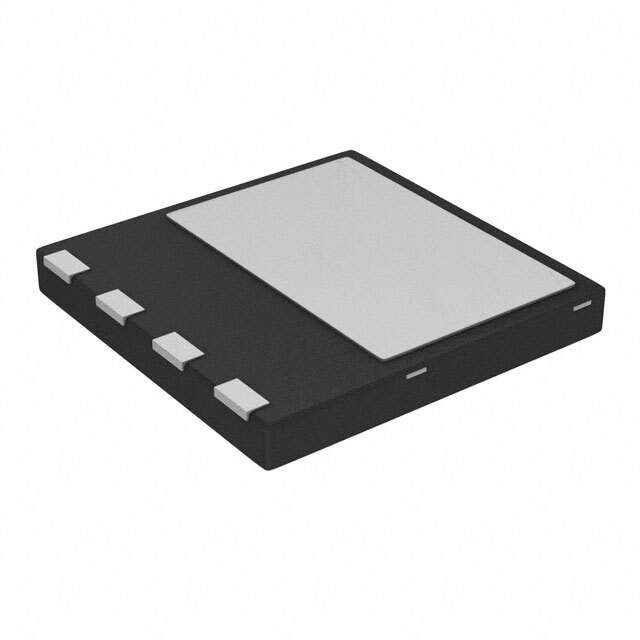

IDL08G65C5XUMA2 Real Image
Same model may have multiple batches, images only for reference.

IDL08G65C5XUMA2

Part No IDL08G65C5XUMA2
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 8A VSON-4 / Diode Silicon Carbide Schottky 650 V 8A Surface Mount PG-VSON-4
Datasheet
IDL08G65C5XUMA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Infineon Technologies
Packaging Reel - TR
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 8 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 140 µA @ 650 V
Capacitance @ Vr, F 250pF @ 1V, 1MHz
Mounting Surface Mount
Case / Package 4-PowerTSFN
Supplier Device Package PG-VSON-4
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number IDL08G65
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number SP001632950,448-IDL08G65C5XUMA2DKR,IDL08G65C5XUMA2-ND,448-IDL08G65C5XUMA2CT,448-IDL08G65C5XUMA2TR
Standard Package 3,000
Win Source Part Number 1324271-IDL08G65C5XUMA2
Ultra Librarian 3D Model Ultra Librarian IDL08G65C5XUMA2 CAD Model

Description

The Infineon Technologies IDL08G65C5XUMA2 is a silicon carbide Schottky diode designed for rectifier applications.

  • Maximum Reverse Voltage: 650V
  • Average Rectified Current: 8A
  • Forward Voltage: 1.7V @ 8A
  • Reverse Recovery Time: 0ns
  • Operating Temperature: -55°C and 150°C
  • Package: PG-VSON-4
  • Capacitance: 250pF @ 1V, 1MHz
