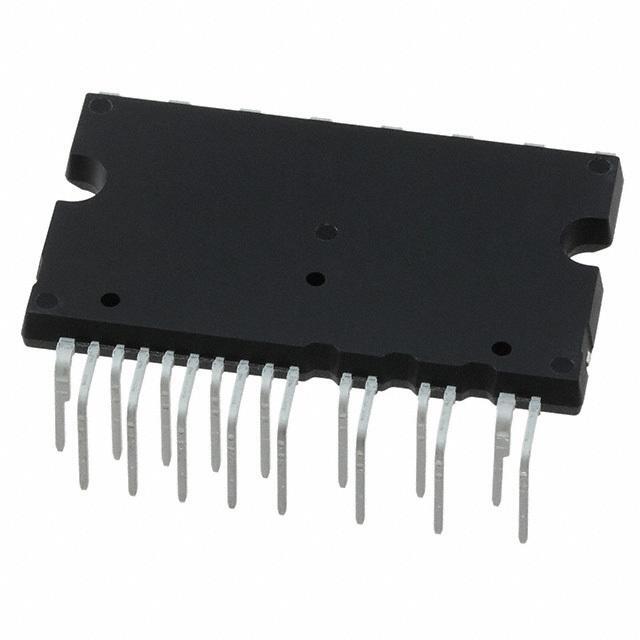

IKCM15F60GAXKMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IKCM15F60GAXKMA1

Part No IKCM15F60GAXKMA1
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description IFPS MODULES / High Reliability Intelligent Power Modules IC
Datasheet
IKCM15F60GAXKMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Series CIPOS
Type IGBT
Configuration 3 Phase
Current 15A
Voltage 600V
Voltage - Isolation 2000Vrms
Package 24-PowerDIP Module (1.028", 26.10mm)
Win Source Part Number 776729-IKCM15F60GAXKMA1
Popularity Medium
Supply and Demand Status Limited
Family Name IKCM15F60GA
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian IKCM15F60GAXKMA1 CAD Model

Description

The Infineon Technologies CIPOS series IGBT is a 3 phase 15A power module with a voltage rating of 600V and isolation voltage of 2000Vrms.

  • Voltage: 600V
  • Current: 15A
  • Isolation Voltage: 2000Vrms
  • Package: 24-PowerDIP Module (1.028", 26.10mm)
  • Halogen-Free: Yes
  • Family Name: IKCM15F60GA
  • Category: Discrete Semiconductor Products
  • Supply and Demand Status: Limited
