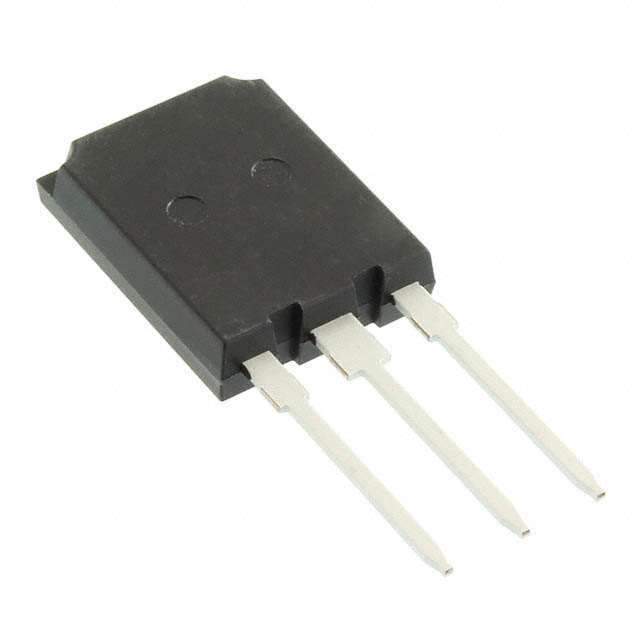

IKQ120N60TXKSA1

Name: IKQ120N60TXKSA1
Brand: Infineon Technologies
SKU: 1064843
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IKQ120N60TXKSA1
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	IGBT 600V 160A TO247-3-46 / IGBT Trench Field Stop 600 V 160 A 833 W Through Hole PG-TO247-3-46
Datasheet	IKQ120N60TXKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr	Infineon Technologies
Series	TrenchStop™
Package	Tube
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	160 A
Current - Collector Pulsed (Icm)	480 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 120A
Power - Max	833 W
Switching Energy	6.2mJ (on), 5.9mJ (off)
Input Type	Standard
Gate Charge	703 nC
Td (on/off) @ 25°C	50ns/565ns
Test Condition	400V, 120A, 3Ohm, 15V
Reverse Recovery Time (trr)	241 ns
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3-46
Base Product Number	IKQ120
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	IKQ120N60T,SP001138292
Standard Package	30
Win Source Part Number	1064843-IKQ120N60TXKSA1
Ultra Librarian 3D Model	Ultra Librarian IKQ120N60TXKSA1 CAD Model

Description

The IKQ120N60TXKSA1 is a TrenchStop™ IGBT transistor with a voltage rating of 600V and a current rating of 160A.

Voltage Rating: 600V
Current Rating: 160A
Mounting Type: Through-Hole
Maximum Power Dissipation: 833W
Gate Charge: 703nC
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 175°C
