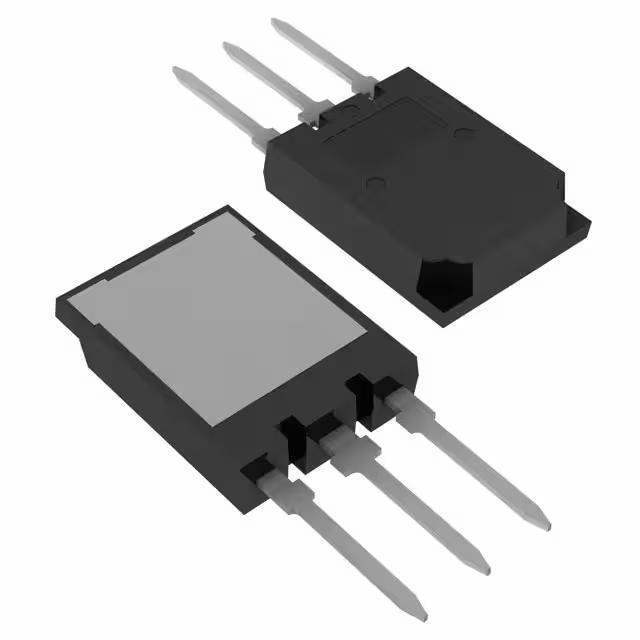

IKQ40N120CH3XKSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IKQ40N120CH3XKSA1

Part No IKQ40N120CH3XKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT 1200V 80A TO247-3-46
Datasheet
IKQ40N120CH3XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1168902-IKQ40N120CH3XKSA1
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products -Transistors -IGBTs Single IGBTs
Package Tube
Product Status Not For New Designs
Base Product Number IKQ40N120
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package PG-TO247-3-46
Input Type Standard
Ultra Librarian 3D Model Ultra Librarian IKQ40N120CH3XKSA1 CAD Model

Description

The IKQ40N120 is a single IGBT transistor manufactured by Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Temperature Range: -40°C to 175°C
  • Mounting Type: Through Hole
  • Package: TO-247-3
  • Input Type: Standard
  • Base Product Number: IKQ40N120
  • Status: Not Recommended for New Designs
