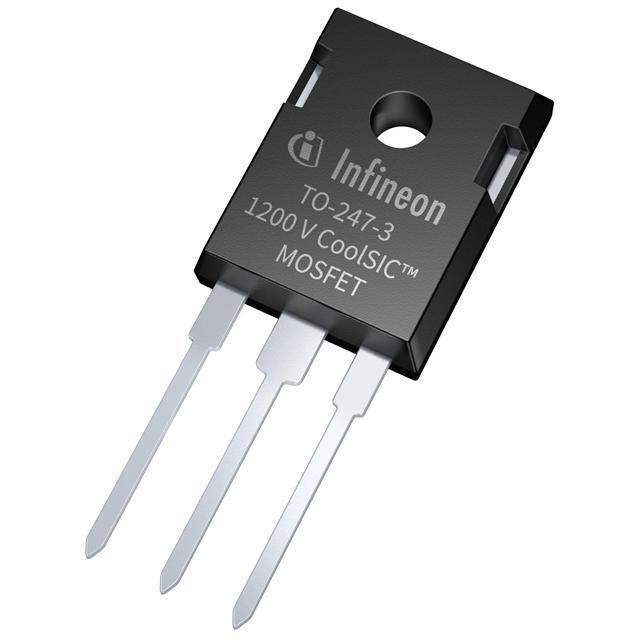

Same model may have multiple batches, images only for reference.
IMZ120R030M1HXKSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IMZ120R030M1HXKSA1

Part No IMZ120R030M1HXKSA1
Manufacturer Infineon Technologies
Catalog FETs - Single
Description SICFET N-CH 1.2KV 56A TO247-4
Datasheet
IMZ120R030M1HXKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202692-IMZ120R030M1HXKSA1
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products- Transistors -FETs, MOSFETs -Single FETs, MOSFETs
Series CoolSiC™
Package Tube
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO247-4-1
Ultra Librarian 3D Model Ultra Librarian IMZ120R030M1HXKSA1 CAD Model

Description

Introducing the Infineon Technologies CoolSiC™ N-Channel SiCFET (Silicon Carbide) transistor.

  • Operating Temperature: -55°C to 175°C (TJ)
  • Mounting Type: through-hole
  • Supplier Device Package: PG-TO247-4-1
