Same model may have multiple batches, images only for reference.

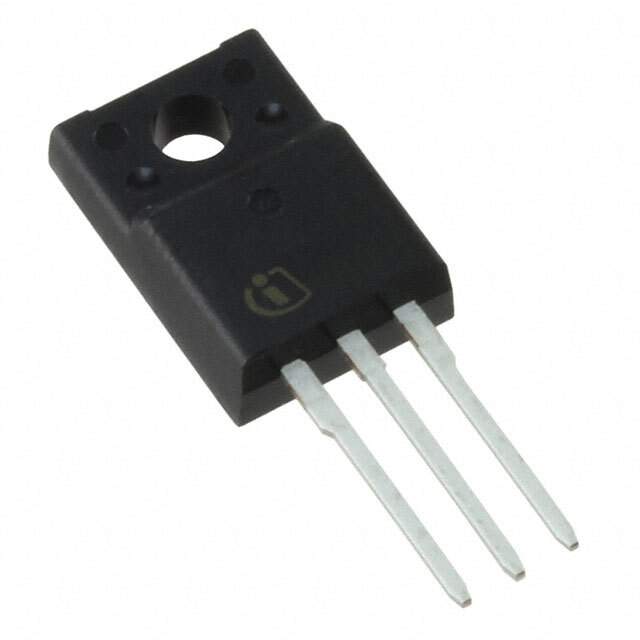

IPAN80R450P7XKSA1 Real Image
Same model may have multiple batches, images only for reference.

IPAN80R450P7XKSA1

Part No IPAN80R450P7XKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 11A TO220-3-31
Datasheet
IPAN80R450P7XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 25 Weeks
Features N-Channel 800 V 11A (Tc) 29W (Tc) Through Hole PG-TO220-3-FP
Manufacturer Infineon Technologies
Series CoolMOS™ P7
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package TO-220-3 Full Pack
Case / Package PG-TO220-3-FP
Family Name IPAN80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874664-IPAN80R450P7XKSA1
Ultra Librarian 3D Model Ultra Librarian IPAN80R450P7XKSA1 CAD Model

Description

The Infineon Technologies IPAN80R450P7XKSA1 is a CoolMOS™ P7 series N-channel MOSFET.

  • Drain-Source Breakdown Voltage: 800V
  • Continuous Drain Current: 11A (Tc)
  • Power Dissipation: 29W (Tc)
  • Category: Discrete Semiconductor Products
  • Package: TO-220-3 Full Pack
  • Mounting: Through Hole
  • Family Name: IPAN80
  • Case/Package: PG-TO220-3-FP
  • Operating Temperature: -55°C to 150°C (TJ)
  • Supply and Demand: Limited
  • Quantity per Package: 50
