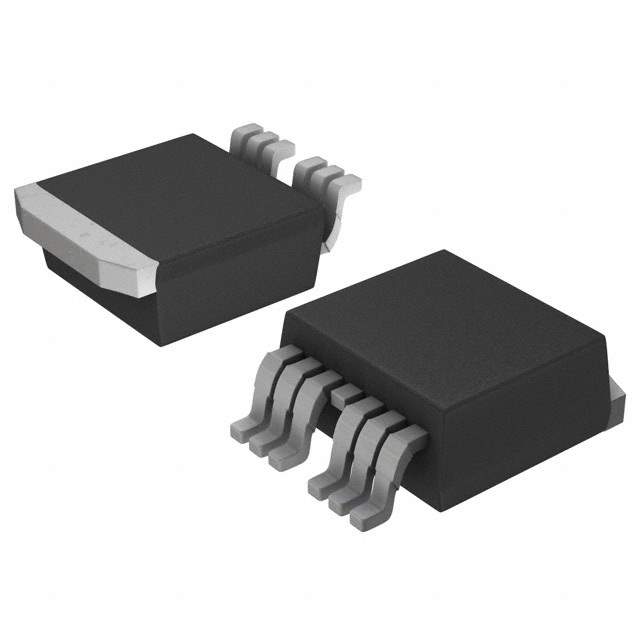

IRF1405ZS-7P

Name: IRF1405ZS-7P
Brand: Infineon Technologies
SKU: 604218
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF1405ZS-7P
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	AUTOMOTIVE MOSFET \| MOSFET N-CH 55V 120A D2PAK7
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	55V
Id - Continuous Drain Current	120A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	4.9mOhm at 88A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 150μA
Gate Charge (Qg) (Maximum) at Vgs	230nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	5360pF at 25V
Power Dissipation (Maximum)	230W
Temperature Range - Operating	-55°C ~ 175°C
Mounting Style	SMD
Supplier Device Package	D2PAK (7-Lead)
Manufacturer Package	TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Win Source Part Number	1186906-IRF1405ZS-7P
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRF1405ZS-7P CAD Model

Alternative Products

Description

The MOSFET is a powerful and reliable electronic component designed for use in various applications and manufactured by Infineon Technologies.

Transistor Type: N-channel
Drive Voltage: 10V
Maximum Drain-Source Breakdown Voltage: 55V
Power Dissipation: 230W
Continuous Drain Current: 120A
Rds On (Maximum) @ Id, Vgs: 4.9mOhm @ 88A, 10V
Gate Source Voltage(th) (Maximum) @ Id: 4V @ 150μA
Gate Charge (Qg) (Maximum) @ Vgs: 230nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 5360pF @ 25V
Package: D2PAK (7-Lead)
Status: Obsolete
