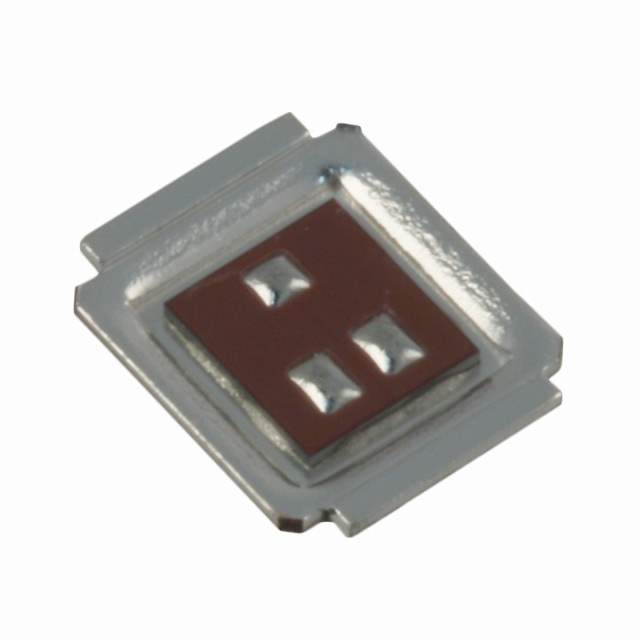

The Infineon Technologies 803838-IRF6609TRPBF is a MOSFET (Metal Oxide) FET Type N-Channel component that is obsolete (End Of Life) and is supplied in the DirectFET MT package.

• Drain to Source Voltage (Vdss): 20V
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Temperature Range - Operating: -40°C ~ 150°C
• Power Dissipation (Maximum): 1.8W, 89W (Tc)
• Rds On (Maximum) @ Id, Vgs: 2mOhm @ 31A, 10V
• Gate Charge (Qg) (Maximum) @ Vgs: 69nC @ 4.5V
• Input Capacitance (Ciss) (Maximum) @ Vds: 6290pF @ 10V
• Current - Continuous Drain (Id) @ 25°C: 31A, 150A (Tc)
• Vgs(th) (Maximum) @ Id: 2.45V @ 250μA
• Maximum Vgs: ±20V
