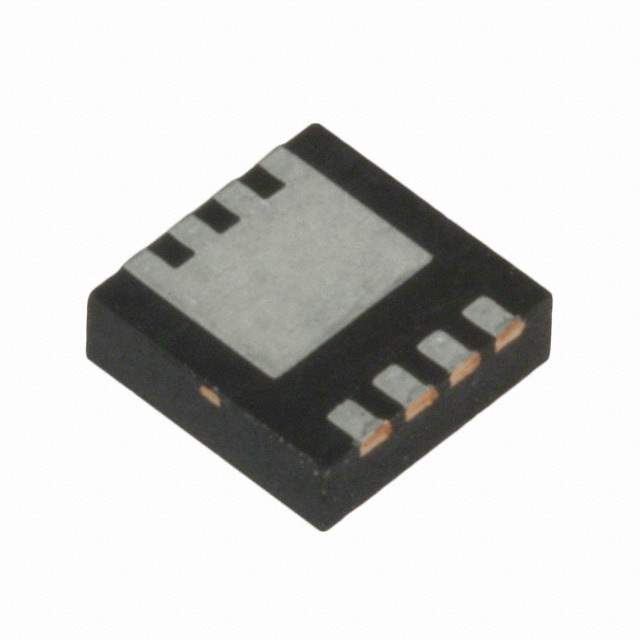

Same model may have multiple batches, images only for reference.

IRFH5104TR2PBF

Name: IRFH5104TR2PBF
Brand: Infineon Technologies
SKU: 462049
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFH5104TR2PBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 24A PQFN
Datasheet	IRFH5104TR2PBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	40V
Continuous Drain Current at 25°C	24A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 100μA
Max Gate Charge	80nC @ 10V
Max Input Capacitance	3120pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3.6W (Ta), 114W (Tc)
Maximum Rds On at Id,Vgs	3.5 mOhm @ 50A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PQFN (5x6)
Dimension	8-VQFN Exposed Pad
Win Source Part Number	1046870-IRFH5104TR2PBF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFH5104TR2PBF CAD Model

Alternative Products

Description

The Infineon Technologies MOSFET, part number IRFH5104TR2PBF, is a high-performance component designed to provide reliable operation in a variety of applications.

Maximum Power Dissipation: 3.6W (Ta), 114W (Tc)
Package: PQFN (5x6)
Product Status: Obsolete (EOL)
Demand: Medium
Maximum Rds On @ Id,Vgs: 3.5 mOhm @ 50A, 10V
