Same model may have multiple batches, images only for reference.

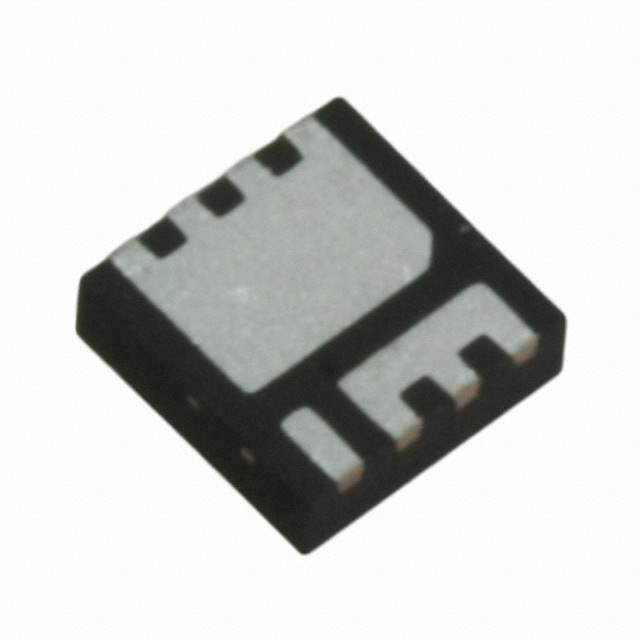

IRFH5306TR2PBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5306TR2PBF

Part No IRFH5306TR2PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 15A 5X6 PQFN  /  N-Channel 30 V 15A (Ta), 44A (Tc) Surface Mount PQFN (5x6) Single Die
Datasheet
IRFH5306TR2PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Package Cut Tape (CT),
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 15A (Ta), 44A (Tc)
Rds On (Max) @ Id, Vgs 8.1mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs 12 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds 1125 pF @ 15 V
Mounting SMD (SMT)
Supplier Device Package PQFN (5x6) Single Die
Package / Case 8-PowerVDFN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IRFH5306TR2PBFDKR,SP001572472,IRFH5306TR2PBFCT,IRFH5306TR2PBFTR
Standard Package 400
Win Source Part Number 1018878-IRFH5306TR2PBF
Ultra Librarian 3D Model Ultra Librarian IRFH5306TR2PBF CAD Model

Description

The IRFH5306TR2PBF from Infineon Technologies is an N-channel MOSFET transistor that is designed for use in a range of applications.

  • Drain to Source Voltage: 30 V
  • Continuous Drain Current: 15A @ 25°C
  • Rds On: 8.1mOhm @ 15A, 10V
  • Vgs(th): 2.35V @ 25µA
  • Package: Cut tape
  • Standard Package: 400
  • ECCN: EAR99
  • RoHS: Compliant
  • REACH: Unaffected
  • Radiation Hardened: No
