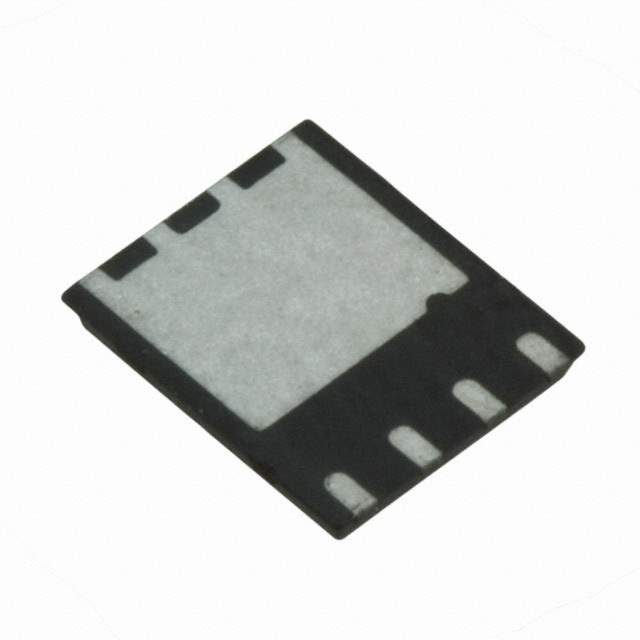

The Infineon Technologies IRFH6200TRPBF is a N-Channel MOSFET that is packaged in a PQFN (5x6) case.

• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current (Ta): 49A @ 25°C
• Continuous Drain Current (Tc): 100A @ 25°C
• Maximum Rds On at Id,Vgs: 0.95 mOhm @ 50A and 10V
• Maximum Gate-Source Voltage: ±12V
• Gate-Source Threshold Voltage: 1.1V @ 150μA
• Maximum Gate Charge: 230nC @ 4.5V
• Maximum Input Capacitance: 10890pF @ 10V
• Power Dissipation (Ta): 3.6W
• Power Dissipation (Tc): 156W
• Operating Temperature Range (TJ): -55°C to 150°C
• Status: Active
• Packaging: Reel - TR
