The Infineon Technologies IRFH8311TRPBF is a MOSFET transistor that features an N-channel polarity.

• Transistor Polarity: N-channel
• Maximum Power Dissipation: 3.6W (Ta), 96W (Tc)
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current: 32A (Ta), 169A (Tc) @ 25°C
• Gate-Source Threshold Voltage: 2.35V @ 100μA
• Maximum Gate Charge: 66nC @ 10V

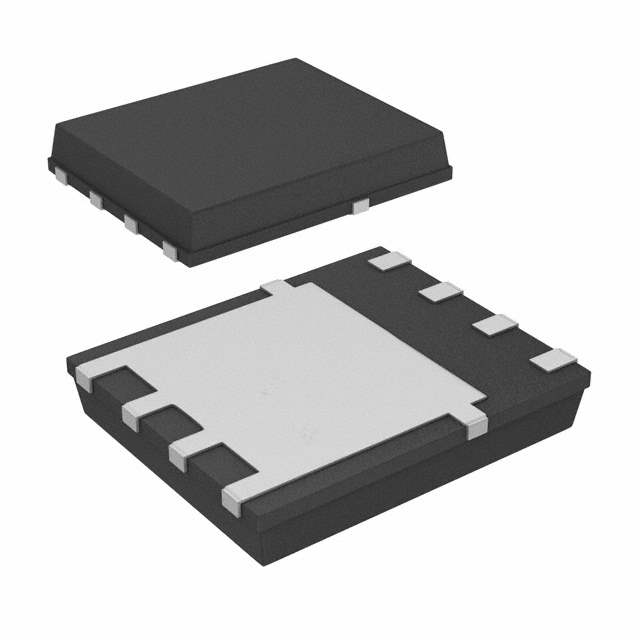

• Package: PQFN (5x6) with an exposed pad
• Temperature Range: -55°C to 150°C (TJ)
• Maximum Rds On @ Id,Vgs: 2.1 mOhm @ 20A, 10V
• Popularity: Common-used part and has a high popularity in the market.
• Estimated EOL Date: 2027
• Compliance: Halogen-free regulations
