Same model may have multiple batches, images only for reference.

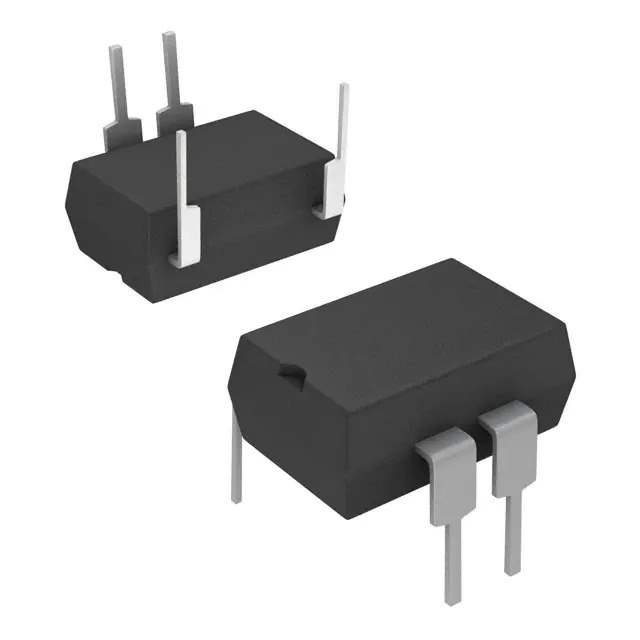

PVA3324N Real Image
Same model may have multiple batches, images only for reference.

PVA3324N

Part No PVA3324N
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 150MA 0-300V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVA, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 300 V
Load Current 150 mA
On-State Resistance (Max) 24 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658144-PVA3324N
Ultra Librarian 3D Model Ultra Librarian PVA3324N CAD Model

Description

The PVA3324N is a solid-state relay with a SPST-NO circuit configuration.

  • Series: PVA
  • Input Voltage: 1.2VDC
  • Output Type: AC and DC
  • On-State Resistance: 24 Ohms
  • Load Current Capacity: 150 mA
  • Voltage Load: 0V to 300V
  • Mounting: Through-hole
  • Package: 8-DIP
  • Manufacturer: Infineon Technologies
  • Status: Obsolete
