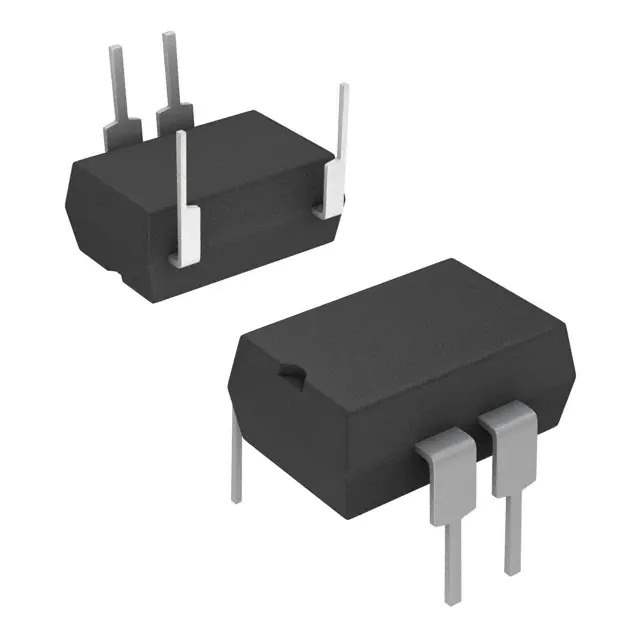

PVD1354 Real Image
Same model may have multiple batches, images only for reference.

PVD1354

Part No PVD1354
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 500MA 0-100V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVD1354 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, BOSFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 500 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658157-PVD1354
Ultra Librarian 3D Model Ultra Librarian PVD1354 CAD Model

Description

The PVD1354 is a solid-state relay designed for use in relay applications and manufactured by Infineon Technologies.

  • Circuit Configuration: SPST-NO (1 Form A)
  • Voltage Input: 1.2VDC
  • Output: DC
  • On-State Resistance: 1.5 Ohms
  • Load Current: 500mA
  • Mounting: Through-Hole
  • Package: Tube
  • Status: Active
  • Applications: Industrial automation, power distribution, and control systems
