Same model may have multiple batches, images only for reference.

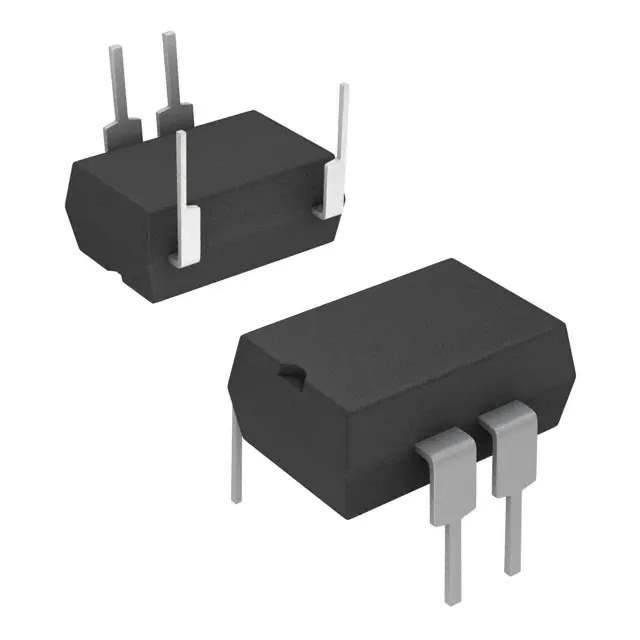

PVD2352 Real Image
Same model may have multiple batches, images only for reference.

PVD2352

Part No PVD2352
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 220MA 0-200V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVD2352 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, BOSFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 200 V
Load Current 220 mA
On-State Resistance (Max) 6 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658161-PVD2352
Ultra Librarian 3D Model Ultra Librarian PVD2352 CAD Model

Description

The PVD2352 is a solid-state relay from Infineon Technologies. With its 8-DIP package, the PVD2352 is suitable for applications that require reliable and compact relay solutions. Please note that this product is now obsolete.

  • Manufacturer: Infineon Technologies
  • Series: PVD
  • Technology: BOSFET
  • Termination Style: PC Pin
  • Package: Through-Hole
  • Input Voltage: 1.2VDC
  • Output Type: DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance (Max): 6 Ohms
  • Load Current: 220 mA
  • Voltage Load Range: 0 V to 200 V
  • Package Type: 8-DIP
  • Status: Obsolete
