Same model may have multiple batches, images only for reference.

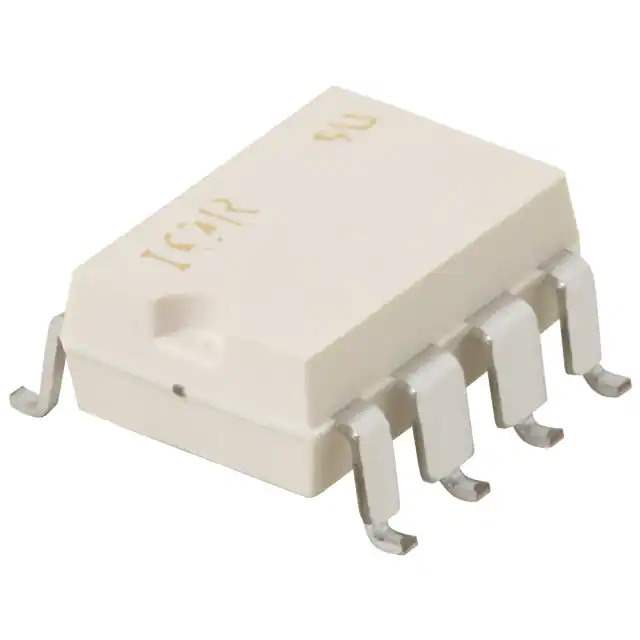

PVT322AS Real Image
Same model may have multiple batches, images only for reference.

PVT322AS

Part No PVT322AS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 170MA 0-250V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVT, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 250 V
Load Current 170 mA
On-State Resistance (Max) 8 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658222-PVT322AS
Ultra Librarian 3D Model Ultra Librarian PVT322AS CAD Model

Description

The PVT322AS Solid State Relay is a high-performance electronic component designed for reliable switching applications.

  • Voltage Input: 1.2VDC
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • On-State Resistance: 8 Ohms
  • Load Current: 170mA
  • Package: Surface Mount
  • Termination Style: Gull-Wing
