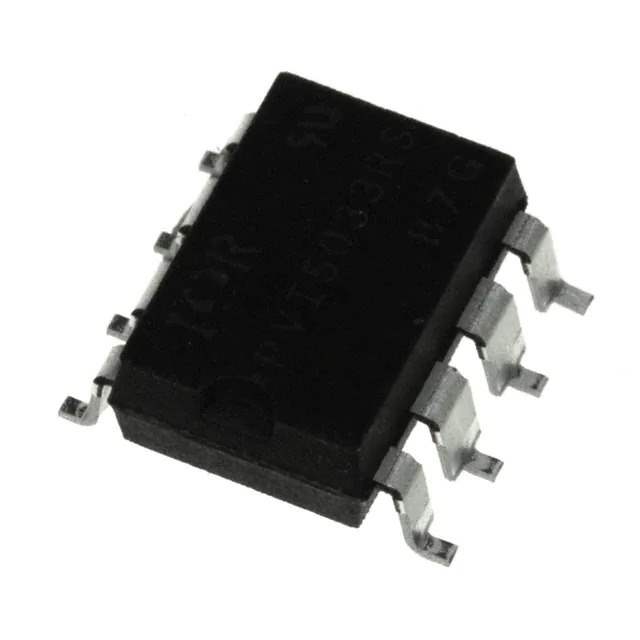

PVT322S-TPBF Real Image
Same model may have multiple batches, images only for reference.

PVT322S-TPBF

Part No PVT322S-TPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 170MA 0-250V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Datasheet
PVT322S-TPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVT, HEXFET®
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 250 V
Load Current 170 mA
On-State Resistance (Max) 10 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number PVT322
Standard Package 750 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658223-PVT322S-TPBF
Ultra Librarian 3D Model Ultra Librarian PVT322S-TPBF CAD Model

Description

The 658223-PVT322S-TPBF is a solid-state relay from the PVT, HEXFET® series.

  • Product Name: 658223-PVT322S-TPBF
  • Series: PVT, HEXFET®
  • Relay Type: Solid State
  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Standard Package Quantity: 750
  • Input Voltage: 1.2VDC
  • Output Type: AC, DC
  • Configuration: SPST
  • On-State Resistance: 10 Ohms
  • Load Current: 170mA
  • Voltage Load: 0V to 250V
  • Package Type: 8-SMD (0.300", 7.62mm)
  • Supplier Device Package: 8-SMD
  • REACH Compliance: Yes
  • HTSUS Code: 8536.41.0030
  • Product Status: Active
  • Manufacturer: Infineon Technologies
  • Base Product Number: PVT322
