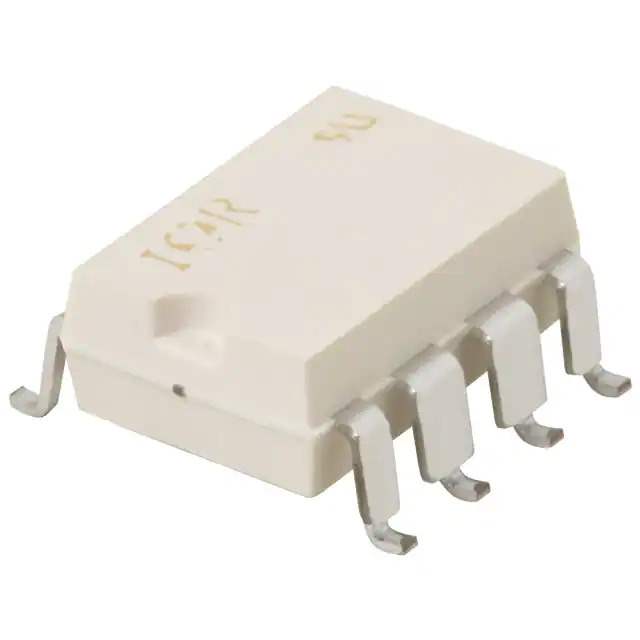

PVT322S Real Image
Same model may have multiple batches, images only for reference.

PVT322S

Part No PVT322S
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 170MA 0-250V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Datasheet
PVT322S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVT, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 250 V
Load Current 170 mA
On-State Resistance (Max) 10 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 931108-PVT322S
Ultra Librarian 3D Model Ultra Librarian PVT322S CAD Model

Description

The PVT322S is a solid-state relay from Infineon Technologies.

  • Type: Single-pole, single-throw normally open
  • On-State Resistance (Maximum): 10 Ohms
  • Load Current: Up to 170 mA
  • Voltage Range: From 0 V to 250 V
  • Input Voltage: 1.2VDC
  • Output Type: AC and DC
  • Mounting: Surface mountable
  • Package: 8-SMD package
  • Termination Style: Gull-wing
  • Series: PVT series and HEXFET series
  • Product Status: Obsolete
