Same model may have multiple batches, images only for reference.

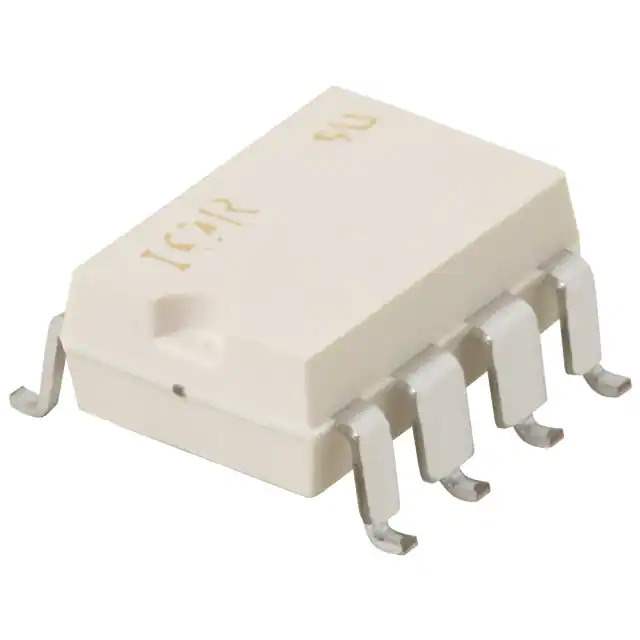

PVT422S Real Image
Same model may have multiple batches, images only for reference.

PVT422S

Part No PVT422S
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 120MA 0-400V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVT, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 35 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658236-PVT422S
Ultra Librarian 3D Model Ultra Librarian PVT422S CAD Model

Description

The Infineon Technologies 658236-PVT422S is an obsolete solid state relay.

  • Category: relays
  • Design: designed for switching AC and DC loads
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • Load Current: 120mA
  • Voltage Input: 1.2VDC
  • Voltage Load: 0V to 400V
  • Package: tube
  • Standard Package Quantity: 50 pieces
  • Termination Style: gull wing
  • Mounting: surface mountable
  • On-State Resistance: 35 Ohms
  • ECCN Status: EAR99
  • REACH Regulations: unaffected
  • HTSUS Code: 8536.41.0030
