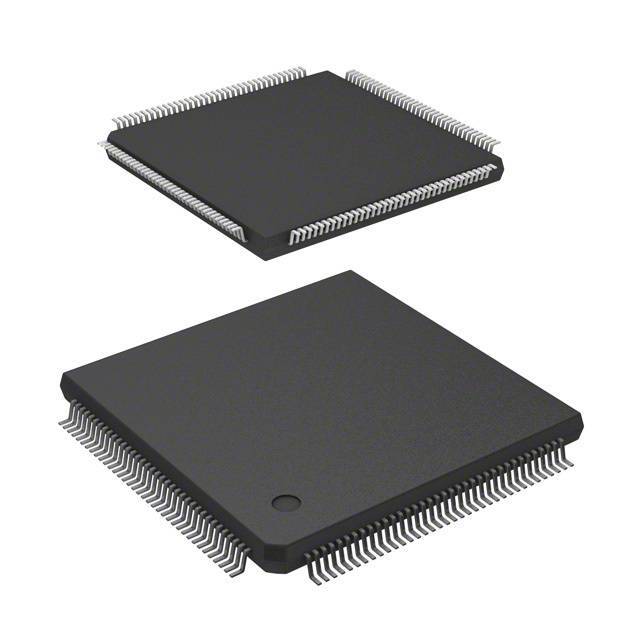

The SAB-C167CR-LM is a 16-bit microcontroller from Infineon Technologies, part of the C166 family. It's designed for real-time control applications demanding high performance and a rich peripheral set. The designation 'CR' often signifies specific features or memory configurations, while 'LM' likely relates to its memory size or package type.

Applications:

• Industrial Automation Systems
• Automotive Engine Control
• Transmission Control Systems
• Robotics
• High-Performance Motor Control

Features:

• 16-Bit CPU: Based on the C166 architecture, providing efficient processing of instructions.
• On-Chip Memory: Includes Flash memory for program storage and RAM for data. The 'LM' designation relates to its memory configuration.
• Timers and Counters: Equipped with multiple timers and counters for precise timing and control functions.
• PWM Generation: Features PWM units suitable for motor control and power conversion applications.
• Serial Communication: UART, SPI, and CAN interfaces for communication with other devices and networks.
• Analog Interfaces: Incorporates Analog-to-Digital Converters (ADCs) for interfacing with analog sensors.
• Interrupt Controller: Provides a flexible interrupt system for handling asynchronous events and real-time tasks.
• Watchdog Timer: Integrated watchdog timer to prevent system malfunctions.

Benefits:

• Efficient Processing: The 16-bit architecture allows for fast execution of control algorithms.
• Flexible Peripheral Set: A wide range of on-chip peripherals reduces the need for external components, saving costs and space.
• Robust Communication: Serial interfaces enable reliable communication in industrial and automotive environments.
• Real-Time Performance: The interrupt controller and timers facilitate precise real-time control.
• System Reliability: The watchdog timer increases overall system stability and prevents failures.

Technical Specifications: The SAB-C167CR-LM operates within defined voltage and temperature ranges. Precise memory configurations, peripheral options, and electrical characteristics are detailed in the Infineon C166 Family User's Manual and relevant device datasheets. Package options may vary.
