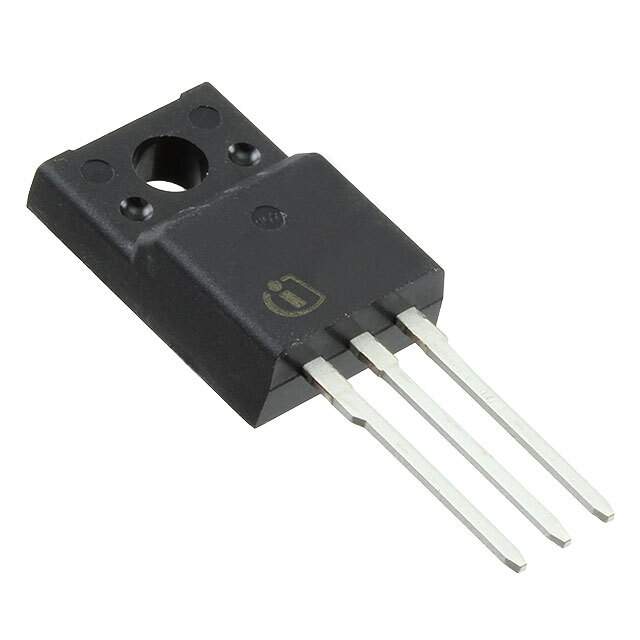

SPA07N60C3XKSA1 Real Image
Same model may have multiple batches, images only for reference.

SPA07N60C3XKSA1

Part No SPA07N60C3XKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 7.3A TO220-FP  /  N-Channel 650 V 7.3A (Tc) 32W (Tc) Through Hole PG-TO220-3-31
Datasheet
SPA07N60C3XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 650 V
Current - Continuous Drain (Id) @ 25°C 7.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 600mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id 3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 27 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 790 pF @ 25 V
Power Dissipation (Max) 32W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO220-3-31
Package / Case TO-220-3 Full Pack
Base Product Number SPA07N60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SPA07N60C3IN-ND,SPA07N60C3,INFINFSPA07N60C3XKSA1,SPA07N60C3IN,SPA07N60C3XK,2156-SPA07N60C3XKSA1,SP000216303
Standard Package 50
Win Source Part Number 1095542-SPA07N60C3XKSA1
Ultra Librarian 3D Model Ultra Librarian SPA07N60C3XKSA1 CAD Model

Description

The SPA07N60C3XKSA1 is a N-Channel MOSFET transistor from Infineon Technologies, belonging to the CoolMOS™ series.

  • Application: Discrete semiconductor products for transistors, FETs, and MOSFETs
  • Mounting Type: Through-hole
  • Package/Case: TO-220-3 Full Pack
  • Drain to Source Voltage: 650V (maximum)
  • Continuous Drain Current: 7.3A (Tc) @ 25°C
  • On-Resistance: 600mOhm (maximum) @ 4.6A and 10V
  • Gate-Source Voltage: ±20V (maximum)
  • Gate Charge: 27nC @ 10V
  • Input Capacitance: 790pF @ 25Vds
  • Operating Temperature Range: -55°C to 150°C (TJ) (maximum)
