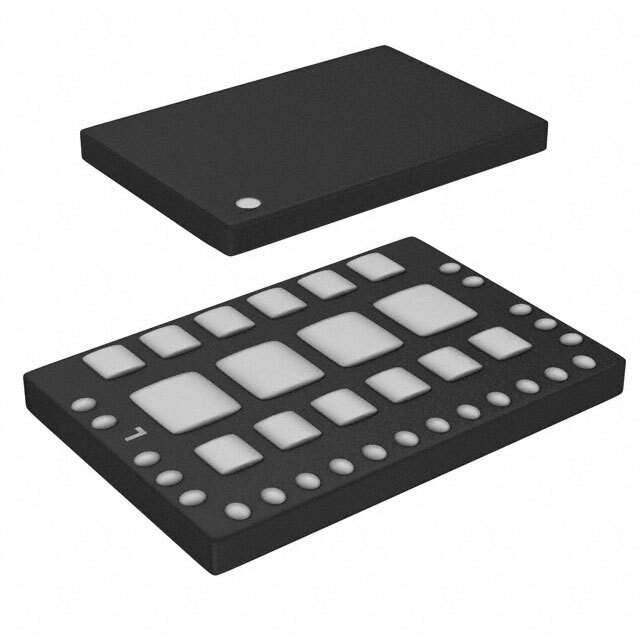

The TDA21321 is a synchronous buck gate driver IC designed for high-current, high-frequency power conversion applications. Manufactured by Infineon Technologies, this gate driver is optimized for driving both high-side and low-side MOSFETs in synchronous rectification topologies. It provides precise control and protection features essential for efficient and reliable power supply designs.

Applications:

• Synchronous buck converters
• High-current power supplies
• Voltage regulators for microprocessors
• Graphic cards
• Server power supplies

Features:

• Adaptive dead-time control
• Integrated bootstrap diode
• Over-current protection
• Under-voltage lockout (UVLO)
• Enable/disable function
• Thermally enhanced package

Benefits:

• Increased efficiency due to adaptive dead-time control, minimizing body diode conduction losses.
• Simplified design with integrated bootstrap diode, reducing external component count.
• Enhanced system reliability with over-current protection, preventing damage from excessive current.
• Improved system stability with under-voltage lockout, ensuring proper operation during low voltage conditions.
• Flexibility in power management with enable/disable function.
• Improved thermal performance with thermally enhanced package.

Additional Details:

The TDA21321 employs adaptive dead-time control, which dynamically adjusts the dead-time between the high-side and low-side MOSFETs to minimize body diode conduction losses, thereby increasing overall efficiency. The integrated bootstrap diode eliminates the need for an external diode, simplifying the design and reducing component count. Over-current protection safeguards the MOSFETs and the load from damage due to excessive current. The under-voltage lockout feature prevents the gate driver from operating when the supply voltage is too low, ensuring proper operation and preventing damage to the MOSFETs. The enable/disable function provides flexibility in power management, allowing the gate driver to be turned off when not needed, reducing power consumption.

The TDA21321 is commonly used in high-performance power supplies for computers, servers, and other electronic devices. Its advanced features and robust design make it a reliable and efficient choice for synchronous rectification applications. The thermally enhanced package ensures efficient heat dissipation, allowing the gate driver to operate at high power levels without overheating. The TDA21321 is a key component in modern power supply designs, enabling higher efficiency, smaller size, and improved reliability. Its precise control and protection features make it an essential part of any high-current, high-frequency power conversion system.
