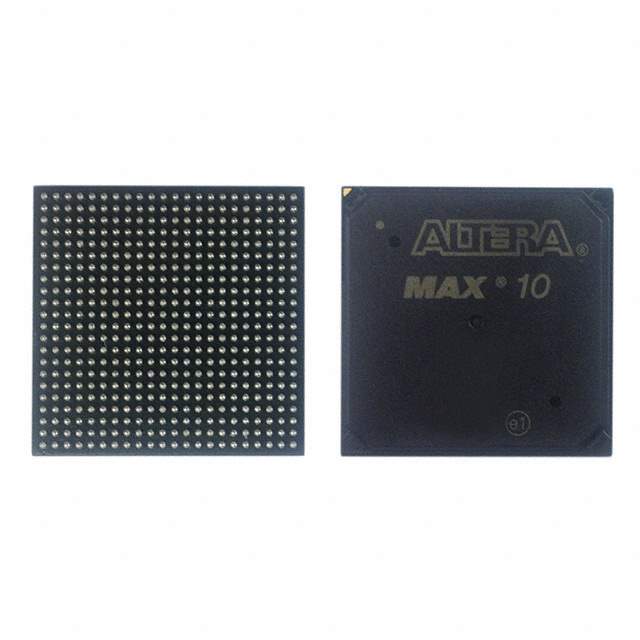

The Intel 10M04DCU324C8G is an FPGA from the MAX 10 family. The MAX 10 FPGAs are known for their flash-based architecture, integrated analog-to-digital converters (ADCs), and dual configuration flash, offering a cost-effective and versatile solution for a variety of applications. They provide a good balance of logic density, performance, and power consumption.

Applications

• Industrial control systems
• Motor control
• Power management
• Sensor interface
• Automotive applications

Features

• Flash-based architecture: Retains configuration without external memory, simplifying the design and reducing system cost.
• Integrated ADCs: Facilitates direct interface with analog sensors, eliminating the need for external ADCs in many applications.
• Dual configuration flash: Enables storing multiple configurations, allowing for easy updates and redundancy.
• Low power consumption: Suitable for battery-powered and energy-sensitive applications.
• User flash memory: Provides on-chip non-volatile memory for data storage.

Benefits

• Reduced system cost: Integration of key components like flash memory and ADCs lowers the bill of materials.
• Simplified design: On-chip flash memory eliminates the need for external configuration devices.
• Increased system reliability: Dual configuration flash provides redundancy and simplifies updates.
• Faster time to market: Easy configuration and development tools accelerate the design process.
• Versatile platform: Suitable for a wide range of applications due to its configurable logic and integrated peripherals.

Additional Details

The 10M04DCU324C8G is programmed using Intel's Quartus Prime development software. It is housed in a U324 package. It is often used in applications requiring quick boot-up times and robust configuration management. Consult the Intel MAX 10 device handbook for complete specifications.
