Same model may have multiple batches, images only for reference.

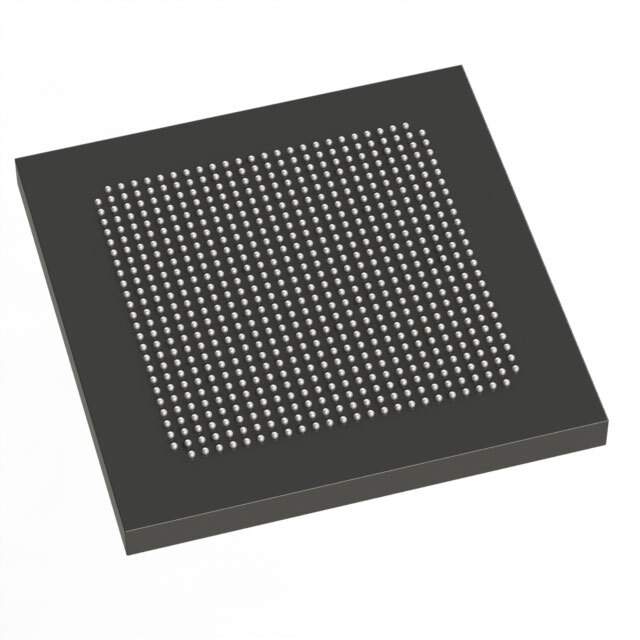

5SGXMA3E1H29I2N Real Image
Same model may have multiple batches, images only for reference.

5SGXMA3E1H29I2N

Part No 5SGXMA3E1H29I2N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 600 I/O 780HBGA  /  series Field Programmable Gate Array (FPGA) IC 600 19456000 340000 780-BBGA, FCBGA
Datasheet
5SGXMA3E1H29I2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 128300
Number of Logic Elements/Cells 340000
Total RAM Bits 19456000
Number of I/O 600
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 780-BBGA, FCBGA
Supplier Device Package 780-HBGA (33x33)
Base Product Number 5SGXMA3
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 968651
Standard Package 24
Win Source Part Number 1029485-5SGXMA3E1H29I2N
Ultra Librarian 3D Model Ultra Librarian 5SGXMA3E1H29I2N CAD Model

Description

This electronic component is an Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array) product with the Win Source Part Number: 1029485-5SGXMA3E1H29I2N.

  • Series: Stratix® V GX
  • Package: Tray
  • Standard Package: 24
  • Mounting: SMD (SMT)
  • Number of I/O: 600
  • Number of LABs/CLBs: 128300
  • Number of Logic Elements/Cells: 340000
  • Total RAM Bits: 19456000
  • Voltage - Supply: 0.87V ~ 0.93V
  • Package / Case: 780-BBGA, FCBGA
  • Supplier Device Package: 780-HBGA (33x33)
  • Temperature Range - Operating: -40°C ~ 100°C (TJ)
  • Alternative Parts (Cross-Reference): 5SGXMA3E3H29C4N, 5SGXMA3E2H29C2LN, and 5SGXMA3E2H29I2LN
  • Status: Obsolete
