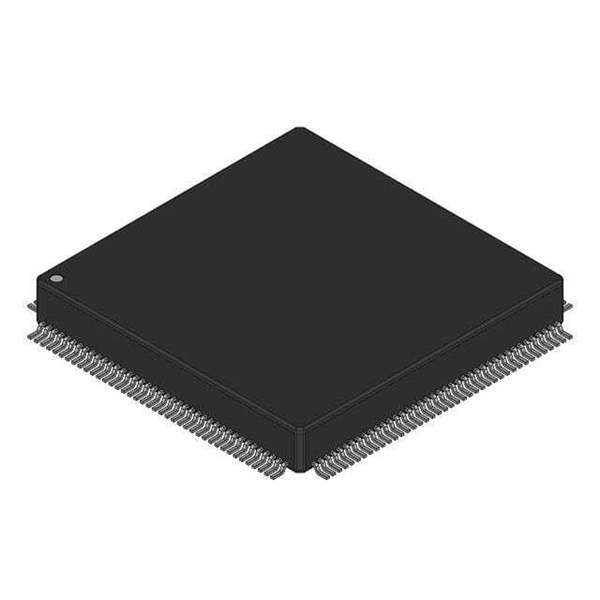

AS83C196EA Intel

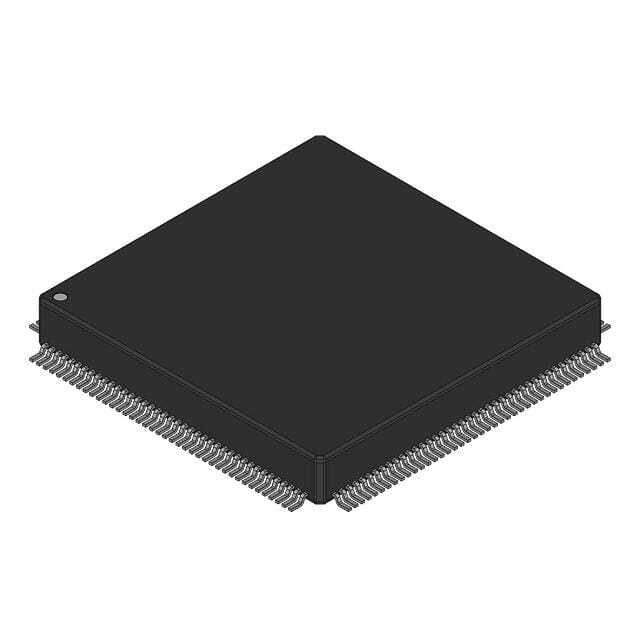

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 83C196EA
Core Size 16-Bit
Speed 40MHz
Connectivity SSIO
Peripherals PWM, WDT
Number of I/O 83
Program Memory Size 8KB (8K x 8)
Program Memory Type ROM
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type External, Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 160-QFP
Supplier Device Package 160-QFP
Base Product Number AS83C196
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1170065-AS83C196EA
Ultra Librarian 3D Model Ultra Librarian AS83C196EA CAD Model

Description

The 1170065-AS83C196EA is a microcontroller from Intel's 83C196EA series from Intel.

  • Speed: 40MHz
  • I/O Pins: 83
  • Program Memory Size: 8KB
  • RAM Size: 4K x 8
  • Peripherals: PWM and WDT
  • Voltage Supply Range: 4.5V to 5.5V
  • Mounting: Surface Mountable
  • Package: 160-QFP
  • Temperature Range: -40°C to 125°C
  • Status: Active
