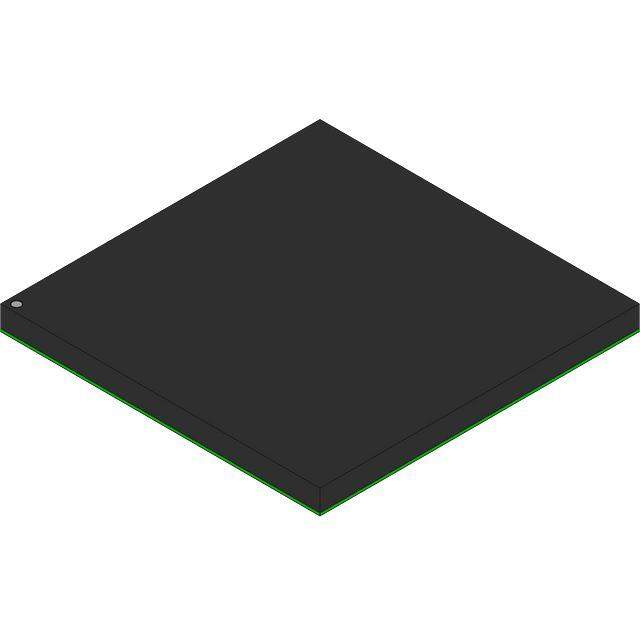

EP1S80B956C6 Real Image
Same model may have multiple batches, images only for reference.

EP1S80B956C6

Part No EP1S80B956C6
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 683 I/O 956BGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intel
Status Obsolete
Number of LABs/CLBs 7904
Number of Logic Elements/Cells 79040
Total RAM Bits 7427520
The number of I/O 683
Supply Voltage (V) 1.425V ~ 1.575V
Mounting Style SMD
Temperature Range - Operating 0°C ~ 85°C
Manufacturer Package 956-BBGA, FCBGA
Supplier Device Package 956-BGA (40x40)
Family Part Number EP1S80
Manufacturer Pack Quantity 21
MSL Level 3 (168 Hours)
Win Source Part Number 738093-EP1S80B956C6
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EP1S80B956C6 CAD Model

Description

The Intel 685003 is an obsolete integrated circuit.

  • Supplier Device Package: 956-BGA (40x40)
  • Total RAM Bits: 7427520
  • Number of LABs/CLBs: 7904
  • Number of I/O: 683
  • Number of Logic Elements/Cells: 79040
  • Device Package Type: 956-BBGA, FCBGA
  • Operating Temperature: 0°C to 85°C
  • Manufacturer Package Quantity: 21
  • Supply and Demand Status: Limited
