Same model may have multiple batches, images only for reference.

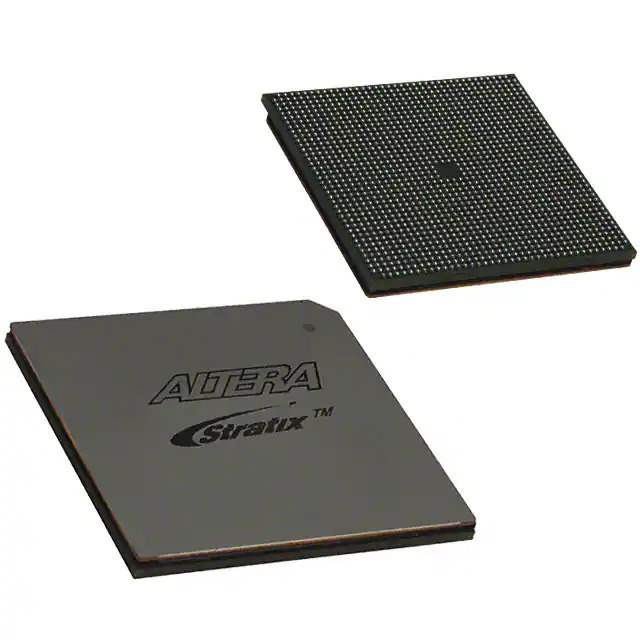

EP2SGX130GF1508C5 Real Image
Same model may have multiple batches, images only for reference.

EP2SGX130GF1508C5

Part No EP2SGX130GF1508C5
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 734 I/O 1508FBGA
Datasheet
EP2SGX130GF1508C5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® II GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 6627
Number of Logic Elements/Cells 132540
Total RAM Bits 6747840
Number of I/O 734
Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1508-BBGA, FCBGA
Supplier Device Package 1508-FBGA, FC (40x40)
Base Product Number EP2SGX130
Standard Package 21 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 589457-EP2SGX130GF1508C5
Ultra Librarian 3D Model Ultra Librarian EP2SGX130GF1508C5 CAD Model

Description

The Stratix II GX is an embedded FPGA (Field Programmable Gate Array) integrated circuit from Intel. It belongs to the Stratix II GX series and is designed for use in various electronic applications.

  • Series: Stratix II GX
  • Package: Tray
  • Package Quantity: 21
  • I/O Pins: 734
  • LABs/CLBs: 6627
  • Logic Elements/Cells: 132540
  • Voltage Supply: 1.15V to 1.25V
  • Operating Temperature: 0°C to 85°C
  • Mounting: Surface Mount
  • Package: 1508-BBGA, FCBGA
  • Status: Obsolete
