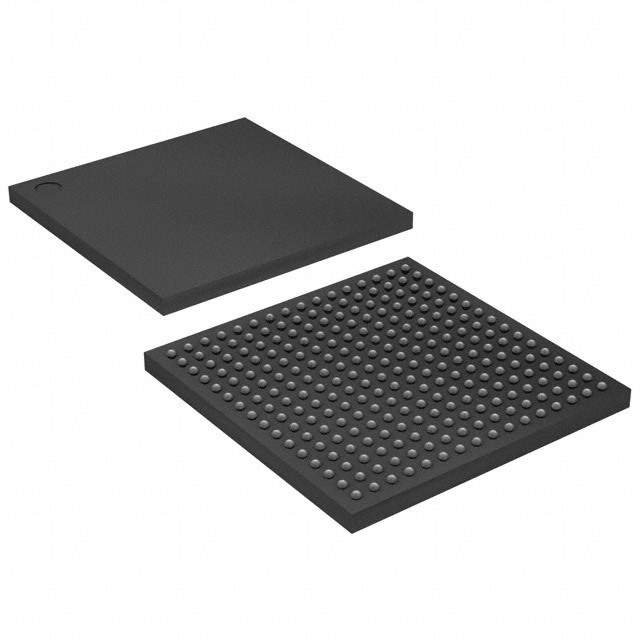

EPM570F256C3 Real Image
Same model may have multiple batches, images only for reference.

EPM570F256C3

Part No EPM570F256C3
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 440MC 5.4NS 256FBGA  /
Datasheet
EPM570F256C3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® II
Package Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.4 ns
Voltage Supply - Internal 2.5V, 3.3V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 160
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting SMD (SMT)
Package / Case 256-BGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number EPM570
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 971399,-544-1294,EPM570F256C3-ND,544-1294
Standard Package 90
Win Source Part Number 1174693-EPM570F256C3
Ultra Librarian 3D Model Ultra Librarian EPM570F256C3 CAD Model

Description

The MAX II EPM570F256C3 is a complex programmable logic device (CPLD) designed for use in embedded systems.

  • Logic Elements: 570
  • Macrocells: 440
  • Programmable: In-System
  • Delay Time: 5.4 ns
  • Operating Voltage: 2.5V or 3.3V
  • Package: 256-BGA
  • RoHS: Non-Compliant
  • ECCN: 3A991D
