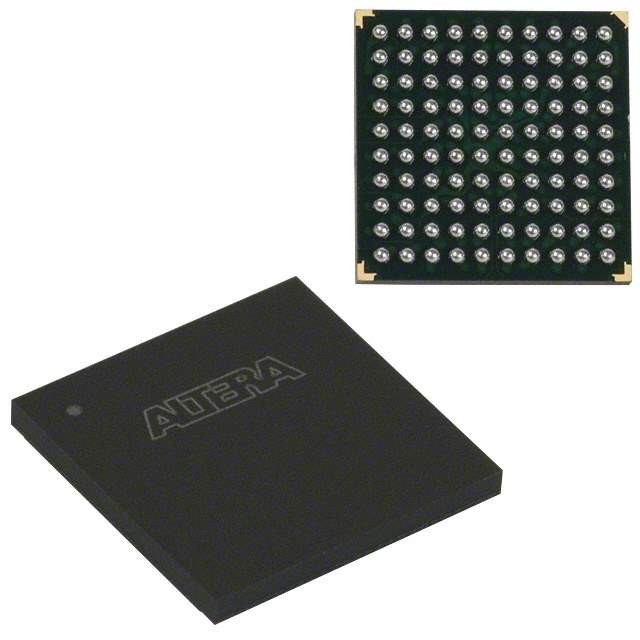

The Intel (formerly Altera) EPM7064AEFC100-7 is a MAX 7000A series Programmable Logic Device (PLD). These devices are designed for a wide range of digital logic applications requiring programmable connectivity and logic functions. They provide a flexible and cost-effective solution for implementing custom logic circuits.

Applications

• Address Decoding: Used in memory and peripheral address decoding circuits.
• Glue Logic: Employed as glue logic to interface between different components in a system.
• State Machines: Implemented as state machines for controlling sequential operations.
• Peripheral Control: Utilized for controlling peripheral devices, such as sensors and actuators.
• Custom Logic Functions: Applied in implementing custom logic functions tailored to specific application requirements.
• Prototyping: Used for prototyping digital circuits before committing to fixed ASIC designs.

Features

• Logic Elements: 64 macrocells (logic elements)
• Pin Count: 100 pins
• Package: Fine-pitch ball grid array (FBGA) package
• Propagation Delay: 7.5 ns propagation delay
• Operating Voltage: 3.3V operating voltage
• User I/O Pins: Multiple user-configurable input/output pins
• In-System Programmability (ISP): Ability to be programmed in-system, simplifying design changes and updates.

Benefits

• Flexibility: Allows for custom hardware implementation of algorithms and protocols, providing flexibility in design.
• Integration: Integrates multiple functions into a single device, reducing board space and system complexity.
• Programmability: Enables rapid prototyping and design iteration through in-system programmability.
• Cost-Effective: Provides a cost-effective solution for implementing custom logic circuits.
• Reduced Time to Market: Allows for rapid prototyping and deployment of designs, reducing time to market.
• Low Power Consumption: Minimizes power consumption, suitable for battery-powered devices and energy-efficient designs.

Additional Details

The EPM7064AEFC100-7 is programmed using Intel's (Altera's) Quartus Prime software, which provides a comprehensive development environment for design entry, simulation, and implementation. The device also features built-in testability features, enabling thorough testing of the implemented logic. With its robust performance and flexibility, the Intel EPM7064AEFC100-7 is a dependable solution for a wide range of digital logic applications.
