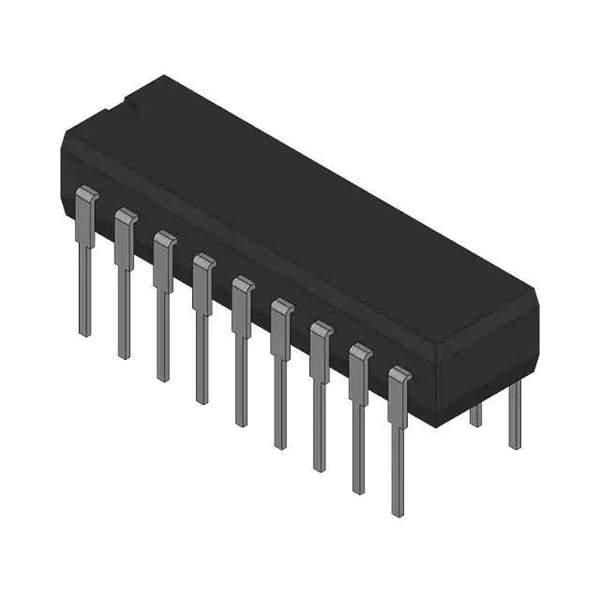

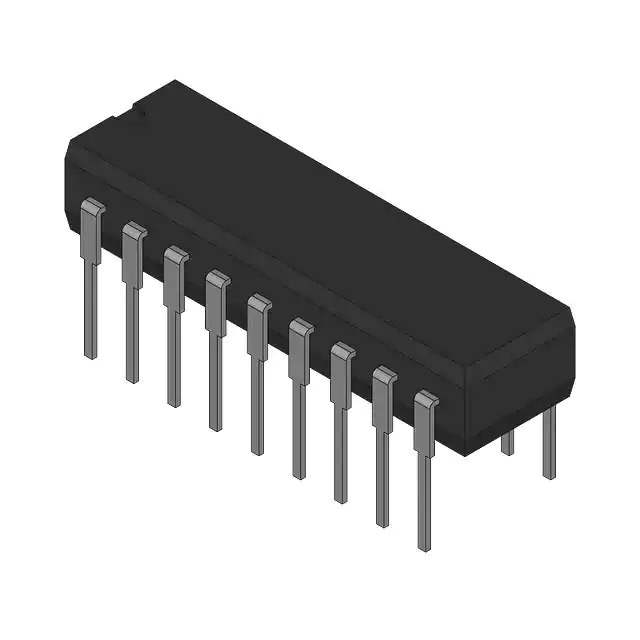

MD2148H3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 4Kbit
Memory Organization 1K x 4
Memory Interface Parallel
Write Cycle Time - Word, Page 55ns
Access Time 55 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C (TC)
Mounting Type Through Hole
Package / Case 18-CDIP
Supplier Device Package 18-CDIP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 916640-MD2148H3
Ultra Librarian 3D Model Ultra Librarian MD2148H3 CAD Model

Description

The 916640-MD2148H3 is a memory module designed for use in electronic devices.

  • Category: Integrated Circuits (ICs) - Memory - Memory
  • Manufacturer: Intel
  • Package: Bulk
  • Standard Package: 1 piece
  • Memory Technology: SRAM - Asynchronous
  • Memory Type: Volatile
  • Memory Size: 4Kbit
  • Access Time: 55ns
  • Voltage Supply: 4.5V to 5.5V
  • Mounting Type: Through Hole
  • Package: 18-CDIP
  • Temperature Range: -55°C to 125°C
  • Memory Format: SRAM
  • Memory Interface: Parallel
  • ECCN: EAR99
  • MSL Level: 3 (168 hours)
  • REACH Status: Vendor Undefined
