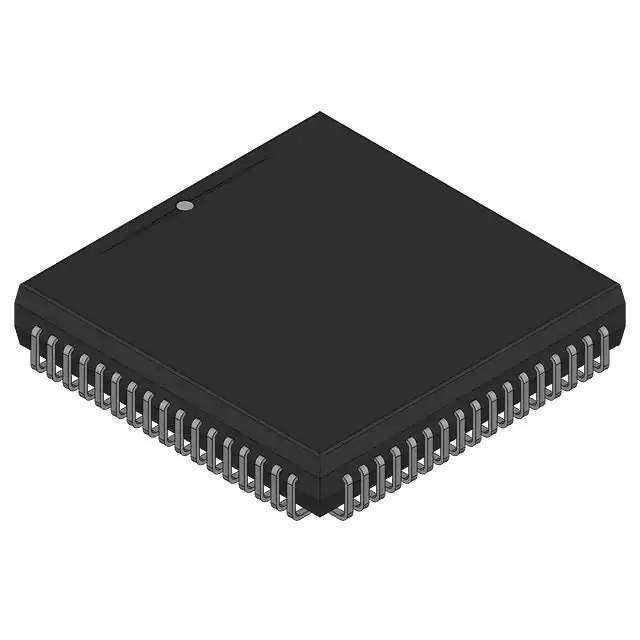

N80C152JD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Intel
Series 80C
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 80C51
Core Size 8-Bit
Speed 16.5MHz
Connectivity Serial Port, UART/USART
Peripherals DMA
Number of I/O 56
Program Memory Type ROMless
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Oscillator Type External
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC
Base Product Number N80C152
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 886763-N80C152JD
Ultra Librarian 3D Model Ultra Librarian N80C152JD CAD Model

Description

The Intel 886763-N80C152JD is an 8-bit microcontroller from the 80C series.

  • Series: 80C
  • Core Processor: 80C51
  • Speed: 16.5MHz
  • Package: Bulk
  • Standard Package: 1 piece
  • I/O Pins: 56
  • Connectivity: Serial Port and UART/USART
  • DMA: Included
  • RAM Size: 256 x 8
  • Oscillator Type: External
  • Programmable: Yes (but not verified)
  • Mounting Type: Surface Mountable
  • Package/Case: 68-LCC (J-Lead)
  • Operating Temperature: 0°C to 70°C
  • Status: Active
