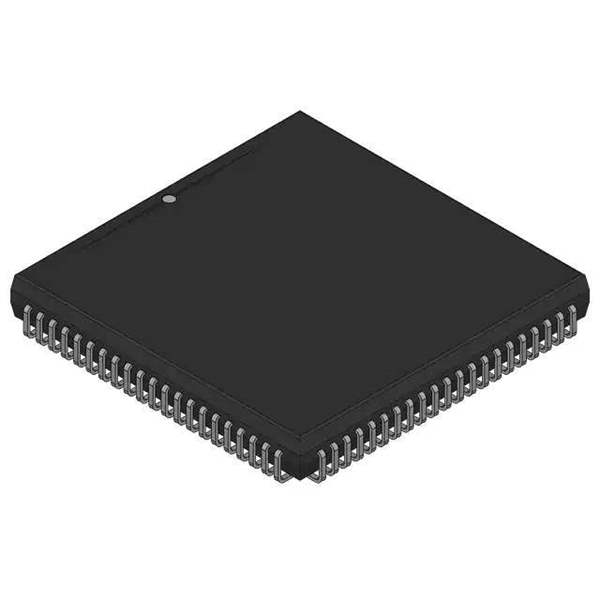

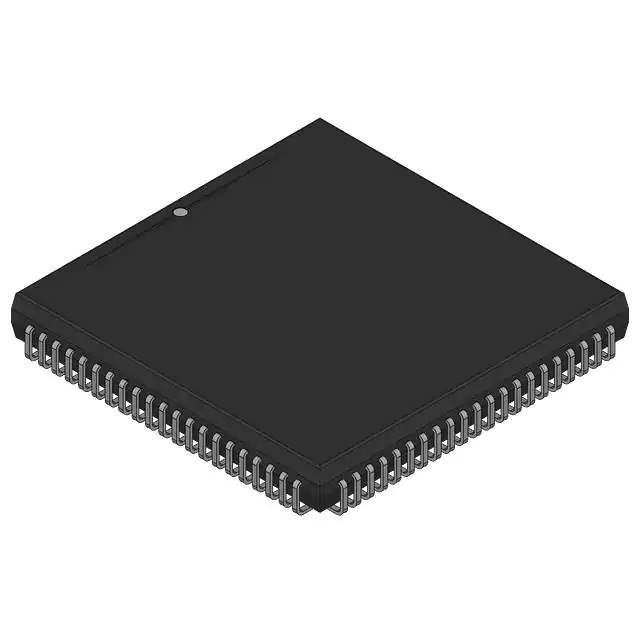

N80C196MD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Intel
Series 80C
Package Tube
Product Status Obsolete
Programmable Not Verified
Core Processor MCS 96
Core Size 16-Bit
Speed 16MHz
Peripherals PWM, WDT
Number of I/O 64
Program Memory Type ROMless
RAM Size 488 x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 14x10b
Oscillator Type External
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 84-LCC (J-Lead)
Supplier Device Package 84-PLCC
Base Product Number N80C196
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 646614-N80C196MD
Ultra Librarian 3D Model Ultra Librarian N80C196MD CAD Model

Description

The 646614-N80C196MD is an integrated circuit (IC) belonging to the 80C series of microcontrollers.

  • Series: 80C
  • Core Processor: MCS 96
  • Core Size: 16-bit
  • Speed: 16MHz
  • Package Type: Tube
  • Package Quantity: 1 piece
  • Peripherals: PWM and WDT
  • I/O Pins: 64
  • RAM Size: 488 x 8
  • A/D Converter: 14 channels, 10-bit resolution
  • Supply Voltage (Vcc/Vdd): 4.5V to 5.5V
  • Operating Temperature (TA): 0°C to 70°C
  • Status: Obsolete
