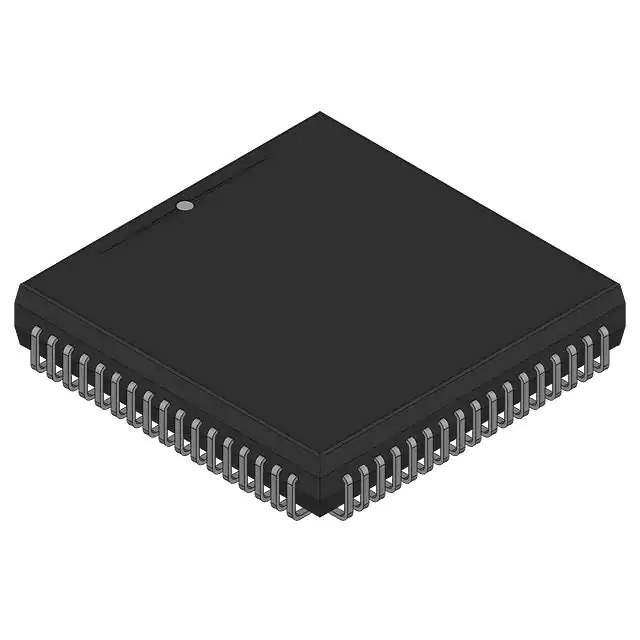

N80C286-12 Real Image
Same model may have multiple batches, images only for reference.

N80C286-12

Part No N80C286-12
Manufacturer Intel
Catalog Embedded - Microprocessors
Description IC MPU 80C286 12.5MHZ 68PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intel
Series 80C286
Package Bulk
Product Status Active
Core Processor 80C286
Number of Cores/Bus Width 1 Core, 16b
Speed 12.5MHz
Co-Processors/DSP Math Engine; 80C287
Graphics Acceleration No
Voltage - I/O 5V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 249379-N80C286-12
Ultra Librarian 3D Model Ultra Librarian N80C286-12 CAD Model

Description

The Intel N80C286-12 is an embedded microprocessor designed for various applications.

  • Series: 80C286
  • Core Processor: 80C286
  • Speed: 12.5MHz
  • Math Engine Co-processor: 80C287
  • Voltage I/O: 5V
  • Mounting Type: Surface Mount
  • Package Size: 68-LCC (J-Lead)
  • MSL Level: 3 (168 hours)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8542.31.0001
  • Manufacturer: Intel
