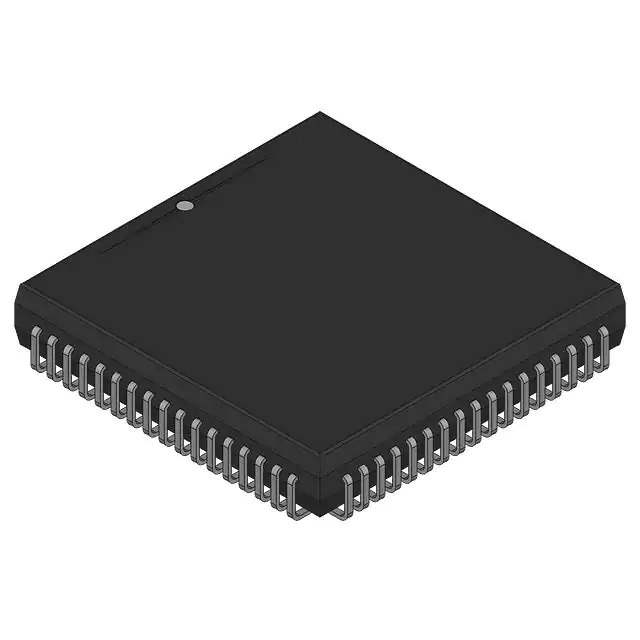

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Function Controller
Voltage - Supply 4.5V ~ 5.5V
Current - Supply 50mA
Temperature Range - Operating 0°C ~ 70°C (TA)
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC
Standard Package 42 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 249409-N82077AA
Ultra Librarian 3D Model Ultra Librarian N82077AA CAD Model

Description

The 249409-N82077AA is an interface controller integrated circuit from Intel.

  • Manufacturer: Intel
  • Type: interface controller integrated circuit
  • Function: provide control and interface capabilities for electronic devices
  • Voltage Supply: 4.5V to 5.5V
  • Current Supply: 50mA
  • Package: 68-LCC (J-Lead)
  • Mounting Type: surface mountable
  • Operating Temperature: 0°C to 70°C
  • Product Status: active
  • Packaging: bulk
  • Standard Package: 42 pieces
