The 26MB40A is a single-phase bridge rectifier manufactured by International Rectifier (now Infineon Technologies). Bridge rectifiers are used to convert alternating current (AC) to direct current (DC), enabling electronic devices to operate from an AC power source.

Applications

• Power Supplies: Used in power supplies for converting AC voltage to DC voltage for various electronic devices.
• Battery Chargers: Used in battery chargers to rectify the AC voltage from the mains to charge batteries.
• Motor Drives: Used in DC motor drives to provide a stable DC voltage for motor control.
• Industrial Automation Equipment: Used in industrial automation systems to convert AC power for control circuits and other electronic components.

Features

• High Surge Current Capability: Withstands high surge currents during startup and transient conditions.
• High Reliability: Provides stable and reliable performance in various operating conditions.
• Compact Size: Allows for easy integration into space-constrained applications.
• High Isolation Voltage: Offers high isolation voltage between the AC input and DC output.

Benefits

• Efficient AC-DC Conversion: Provides efficient conversion of AC voltage to DC voltage.
• Stable DC Output: Delivers a stable DC voltage for reliable operation of electronic devices.
• Protection Against Voltage Spikes: Withstands high surge currents, protecting downstream components.
• Easy Integration: Simplifies the design and assembly process due to its compact size.

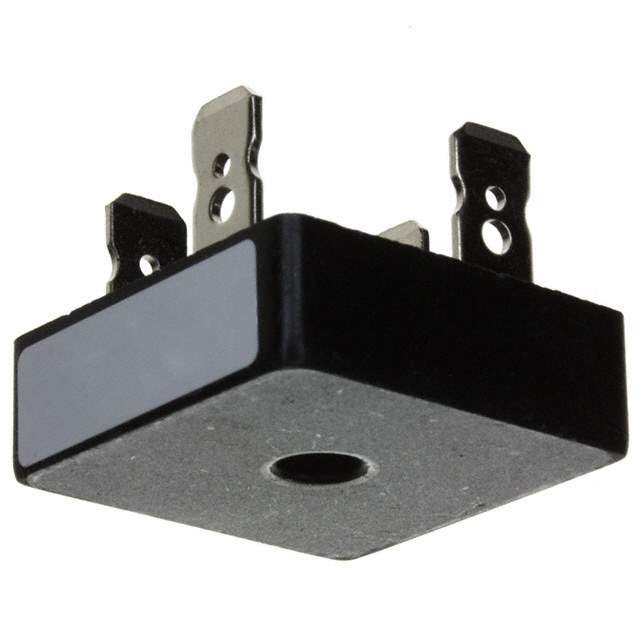

The 26MB40A typically comes in a MB-25 package. It features a maximum repetitive peak reverse voltage of 400V and a maximum average forward rectified current of 25A. It also has a high surge current capability. It is designed to operate over a wide temperature range. The 26MB40A is widely used in many applications due to its reliability and performance characteristics.
