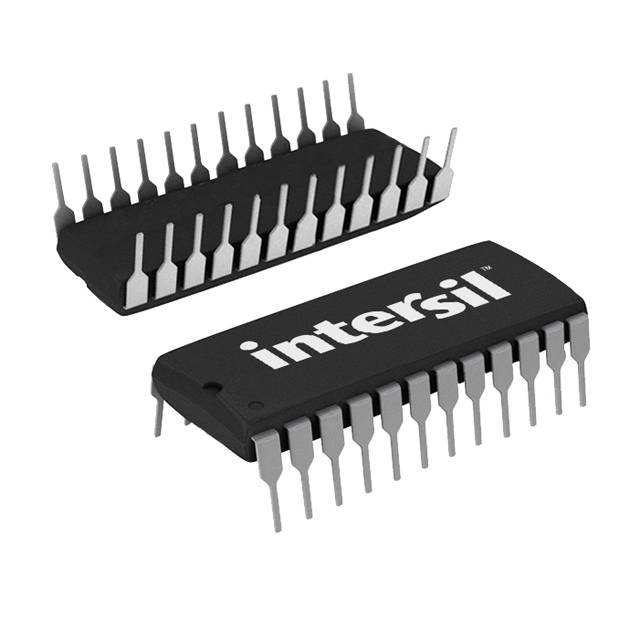

HIN238CPZ Intersil
Same model may have multiple batches, images only for reference.

HIN238CPZ

Part No HIN238CPZ
Manufacturer Intersil
Catalog Interface - Drivers, Receivers, Transceivers
Description IC 4DRVR/4RCVR RS232 5V 24-DIP
Datasheet
HIN238CPZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 4/4
Duplex Full
Receiver Hysteresis 500mV
Data Rate 120Kbps
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C
Mounting Through Hole
Case / Package 24-PDIP
Win Source Part Number 001604-HIN238CPZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HIN238CPZ CAD Model

Description

The HIN238CPZ is a transceiver integrated circuit (IC) manufactured by Intersil. It comes in a tube/rail package and has a temperature range of 0°C to 70°C. The HIN238CPZ has 4 drivers and 4 receivers with full duplex, and the data rate is 120Kbps. It has a receiver hysteresis of 500mV and mounts through hole. The HIN238CPZ is obsolete (EOL) and has a popularity of medium.
