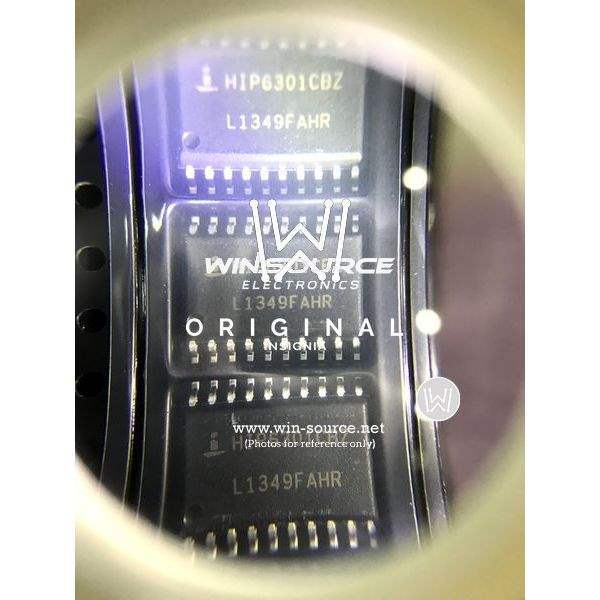

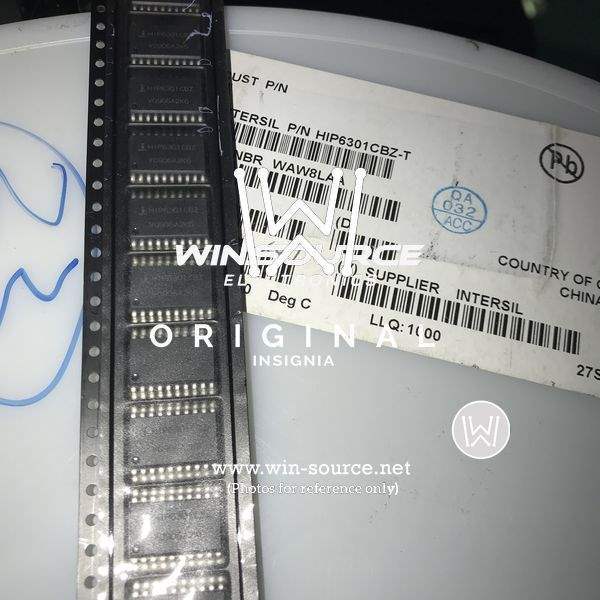

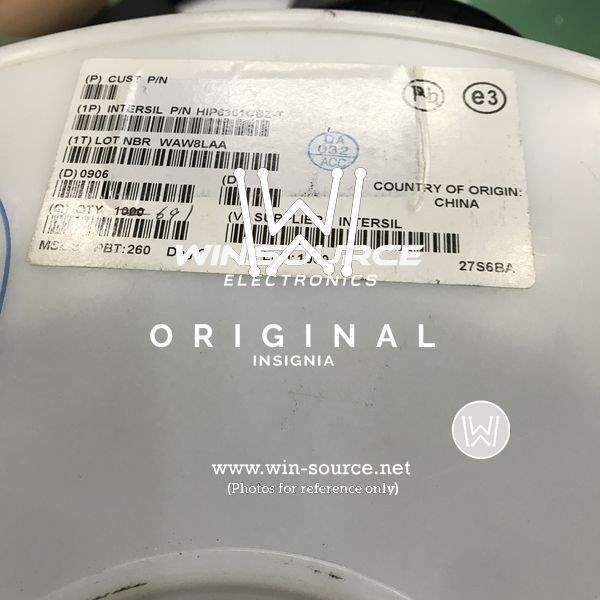

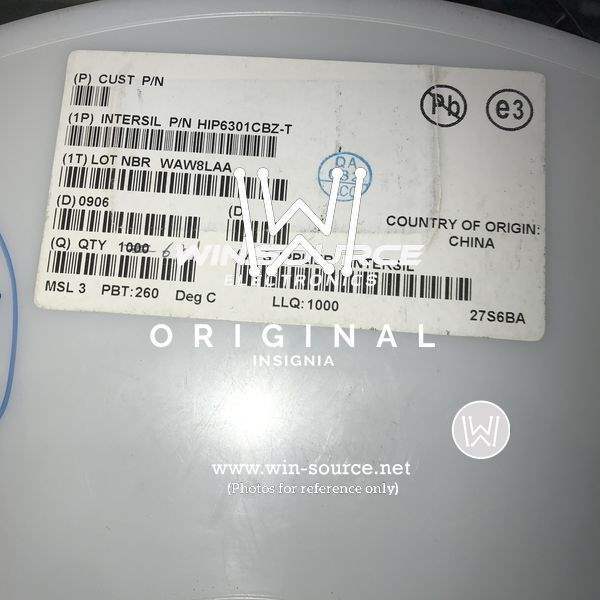

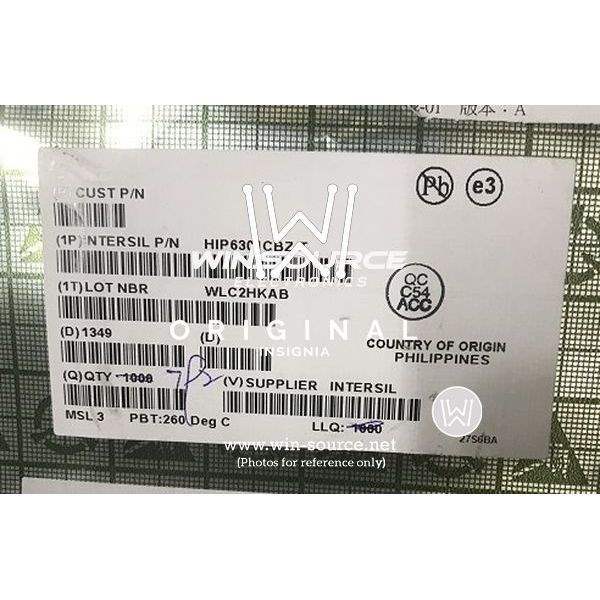

HIP6301CBZ-T Intersil HIP6301CBZ-T Real Image HIP6301CBZ-T real image 2 HIP6301CBZ-T label picture HIP6301CBZ-T label picture 2 HIP6301CBZ-T label picture 3 HIP6301CBZ-T real image 3
Same model may have multiple batches, images only for reference.
HIP6301CBZ-T Intersil HIP6301CBZ-T Real Image HIP6301CBZ-T real image 2 HIP6301CBZ-T label picture HIP6301CBZ-T label picture 2 HIP6301CBZ-T label picture 3 HIP6301CBZ-T real image 3
HIP6301CBZ-T Intersil HIP6301CBZ-T Real Image HIP6301CBZ-T real image 2 HIP6301CBZ-T label picture HIP6301CBZ-T label picture 2 HIP6301CBZ-T label picture 3 HIP6301CBZ-T real image 3
Same model may have multiple batches, images only for reference.

HIP6301CBZ-T

Part No HIP6301CBZ-T
Manufacturer Intersil
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 20SOIC
Datasheet
HIP6301CBZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Output Type PWM Signal
Purpose Step-Down
Topology Buck
Number of Outputs 4
Output Phases 4
Supply Voltage - Operating 4.75 V to 5.25 V
Frequency - Switching 50kHz to 1.5MHz
Duty Cycle (Max) 75%
Clock Sync No
Control Features Enable, Frequency Control, Power Good
Temperature Range - Operating 0°C to 70°C (TA)
Case / Package 20-SOIC
Win Source Part Number 068128-HIP6301CBZ-T
Family Name HIP6301
Introduction Date December 14, 1999
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HIP6301CBZ-T CAD Model

Description

The HIP6301CBZ-T is a 20-SOIC integrated circuit from Intersil.

  • Topology: Buck
  • PWM Outputs: 4
  • Duty Cycle Maximum: 75%
  • Frequency Switching: 50kHz to 1.5MHz
  • Control Features: Enable, Frequency Control, and Power Good
  • Status: Obsolete
  • Supply and Demand Status: Balanced
  • Operating Temperature Range: 0°C to 70°C
  • Supply Voltage: 4.75 V to 5.25 V
