Products specifications

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type PWM Signal
Purpose Step-Down
Topology Buck
Number of Outputs 3
Output Phases 3
Supply Voltage - Operating 4.75 V to 5.25 V
Frequency - Switching 80kHz to 1.5MHz
Duty Cycle (Max) 66.7%
Clock Sync No
Control Features Enable, Frequency Control, Power Good
Temperature Range - Operating 0°C to 105°C (TA)
Case / Package 28-TSSOP
Win Source Part Number 135504-ISL6565BCV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL6565BCV CAD Model

Description

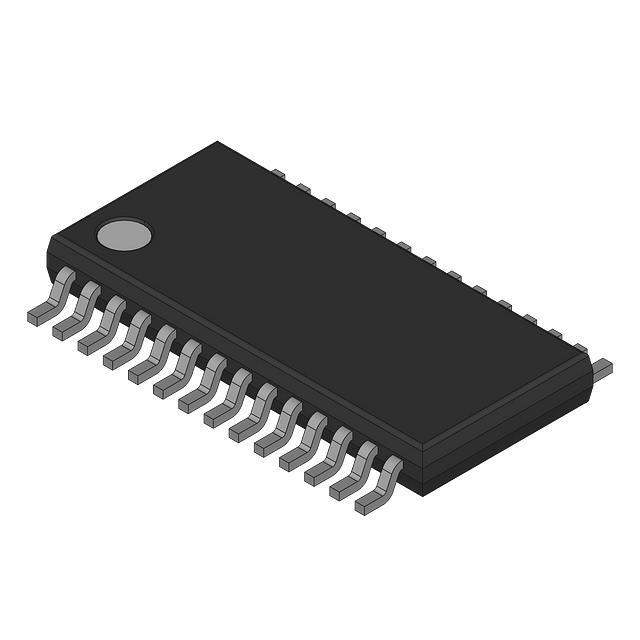

The Intersil ISL6565BCV is an integrated circuit that is designed for use in step-down applications.

  • Signal Output Type: PWM
  • Topology: Buck
  • Frequency Switching: 80kHz to 1.5MHz
  • Outputs: 3
  • Features: Enable, Frequency Control, and Power Good
  • Maximum Duty Cycle: 66.7%
  • Clock Synchronized: No
  • Package: 28-TSSOP
  • Operating Temperature: 0°C to 105°C
  • Popularity: Medium
  • Supply: Limited
  • Status: Obsolete
  • ECCN: EAR99
